Charles B. Montgomery, AIA, ASLA, Principal of HMS Architects, said, ''we evaluated how we could define the space for various activities for elementary students, such as checkers and various games, then decided that the interlocking pavers were a better choice for designing patterns into the courtyard. The design team felt it needed to activate the space by giving it some patterns so it did not seem so monumental. It is attractive to look at when empty, but when the kids are playing on it the courtyard comes alive.''

Crews from Castle Rock Pavers in New Orleans, La. used approximately 112 pallets of Pavestone's Eco-Priora?EUR??,,????'?????????????? permeable pavers on the courtyard at Andrew J. Wilson Charter School. The paver installation portion of the project took about one week to complete while all of the work on the courtyard took about three weeks. Construction on the school took more than one year.

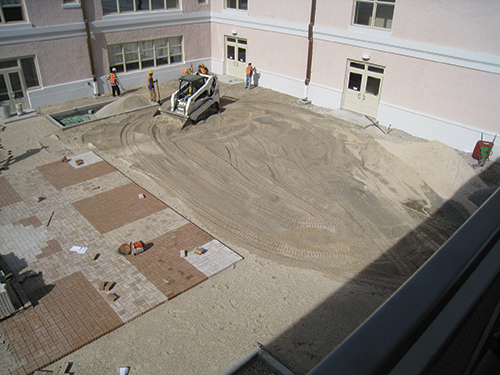

Pavers were placed simultaneously with the installation of the bedding course over the 2,200 square foot courtyard area. The pavers were placed on top of a six-inch layer of #8 aggregate mix. Crews first applied 12 inches of #57 limestone before adding the aggregate mix layer.

Installing the Pavers

Castle Rock Pavers was contracted to install just over 9,000 square feet of permeable pavers for the courtyard. Susanne Drygalla, owner of Castle Rock, immediately saw that this project required a good drainage solution. Drygalla explained, ''There was a big school courtyard that they wanted to pave entirely except for four planters that were installed. When you get these gigantic four-inch per hour rains like you get in Louisiana, there was no way they could drain it using typical interlocking concrete pavers. The paved area carried not only surface drainage from the surrounding site but also had downspouts from the roof discharging storm water as well.'' This additional discharge added to the drainage issues and the area did not have enough fall to effectively drain. By installing Pavestone's Eco-Priora?EUR??,,????'?????????????? permeable pavement and the additional swales, the drainage problem was resolved.

There were some very steep slopes that made grading the project very difficult in areas, but the contractor was successful in obtaining the required results.

When heavy rains flooded that area of the city shortly after the installation of the permeable pavers, the Wilson campus courtyard drained perfectly. This assured everyone involved that the permeable paver solution was the right choice. The whole area around the school was flooded, but their courtyard had no flooding problems whatsoever.

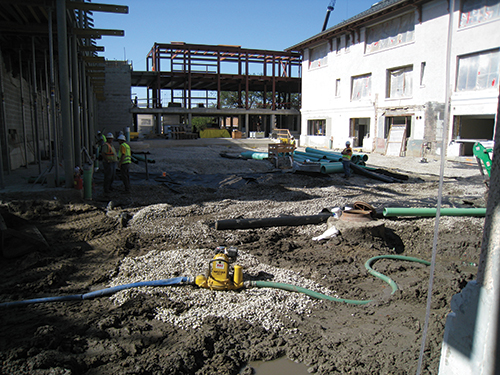

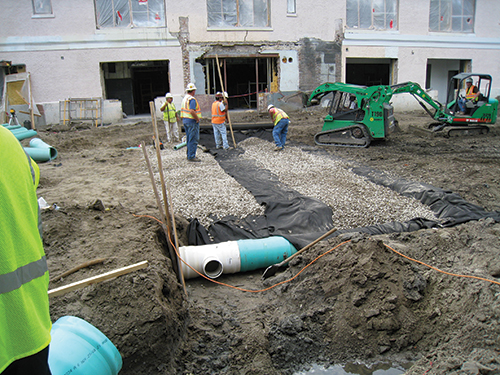

Early in the project, crews had to de-water the site. After de-watering, which took two days, the subsurface drainage was installed. The pumps used to de-water the courtyard were left in place at the beginning of the project due to heavy rains.

Advice for Contractors

When asked what advice she would give contractors when doing a permeable paving job, Drygalla replied, ''When you get a job, get the initial specifications and visit the site. Always remember that you live in the land of Murphy's Law. What can go wrong will go wrong, so just try to preempt it by doing your homework concerning the project specifications.'' Susanne Drygalla recommends visiting the jobsite in person well in advance of any work being done, so you can properly access the drainage situation, which is critical on a project such as this.

Study what materials are being specified for the project, and make sure that these materials will work for the particular jobsite area. A contractor must anticipate potential problems ahead of time to be certain that the project remains on schedule once started. Contractors are more likely to have issues that could have been prevented with a site visit before the bid submittal. In an economy where price is a big factor and the lowest bid gets the contract, a contactor must be confident that all potential issues are covered in the bid.

The nice thing about the Wilson job is that it is a designed job and is not merely functional, it's also aesthetic. There are checker boards made out of pavers and other games for the kids to play on. Even though it is a drainage application, you still have all of these pretty designs with pavers. It shows that functionality and attractiveness do not oppose each other. This was a decorative paving job that turned into a drainage application ?EUR??,,????'?????<
