PRODUCT DESCRIPTION
Design Specifications:
• Pedestrian/equestrian bridge
• Design live load = 85 psf
• Fiberglass support trusses (two diagonals/panel)
• 54" handrail height above decking
• Straight end design
• Horizontal safety midrails providing 9" max. opening
• A307 galvanized steel bolts
• Standard dead load camber
• Creative Pultrusions, Inc. Series 1500 Olive Green color
• Galvanized steel mounting clips
• 3" x 12" #2 pressure treated Southern Yellow Pine decking
• Components shipped unassembled
Span: 80'-0" x 4'-0"

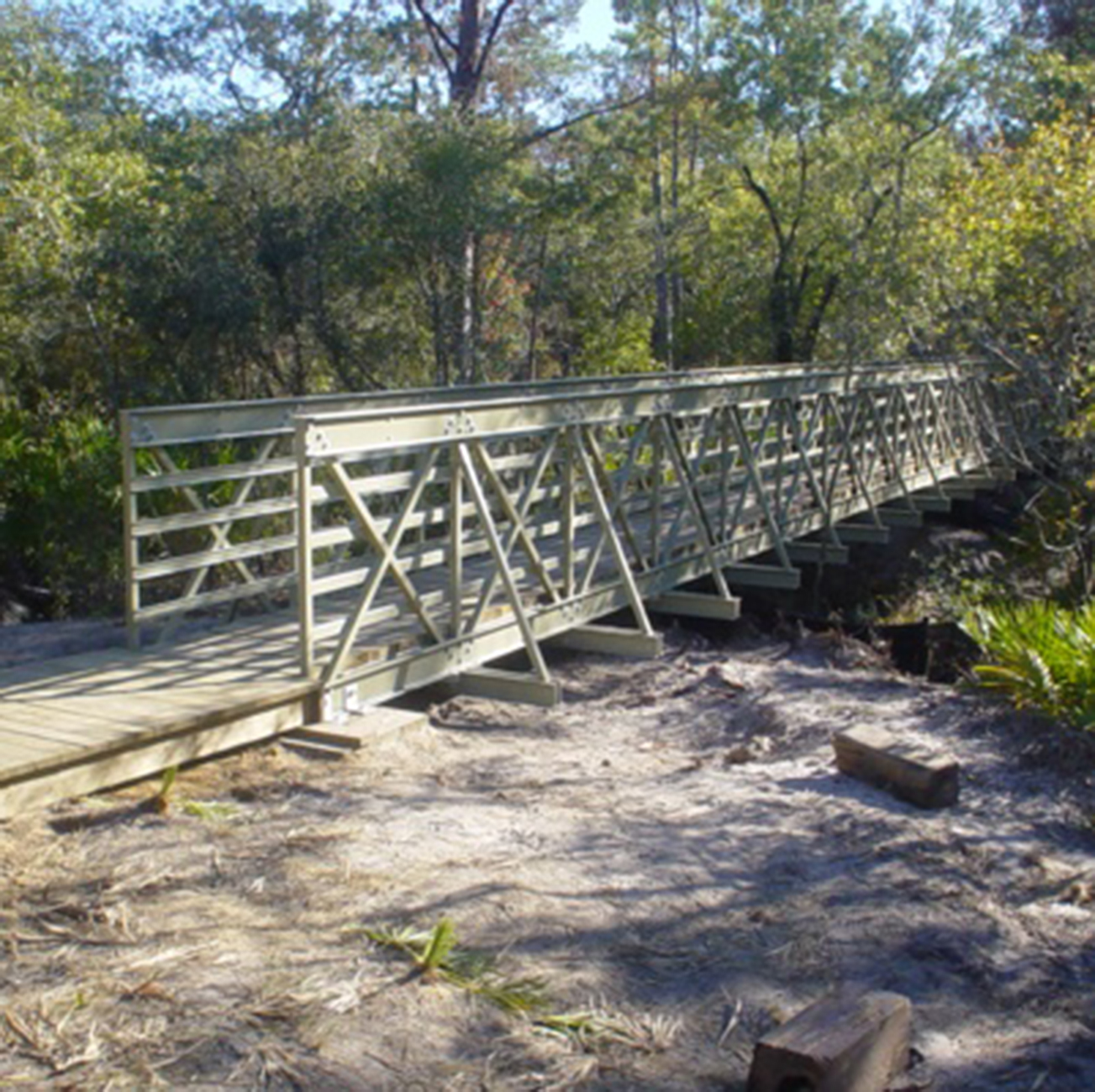

Monkey Creek Straight End Bridge
