PRODUCT DESCRIPTION
Design Specifications:
• Pedestrian/bicycle/maintenance equipment bridge
• Design live load = 85 psf/maintenance equipment (3000 lbs.)
• Fiberglass support trusses (one diagonal/panel)
• 42" handrail height above decking
• Sloped end design
• Top cap
• Horizontal safety midrails providing 4" max. opening
• A307 galvanized steel bolts
• Standard dead load camber
• Creative Pultrusions, Inc. Series 1500 Olive Green color
• Galvanized steel mounting clips
• 3"x12" #2 pressure treated Southern Yellow Pine decking
Components shipped unassembled
Span: 30'-0" x 8'-0"

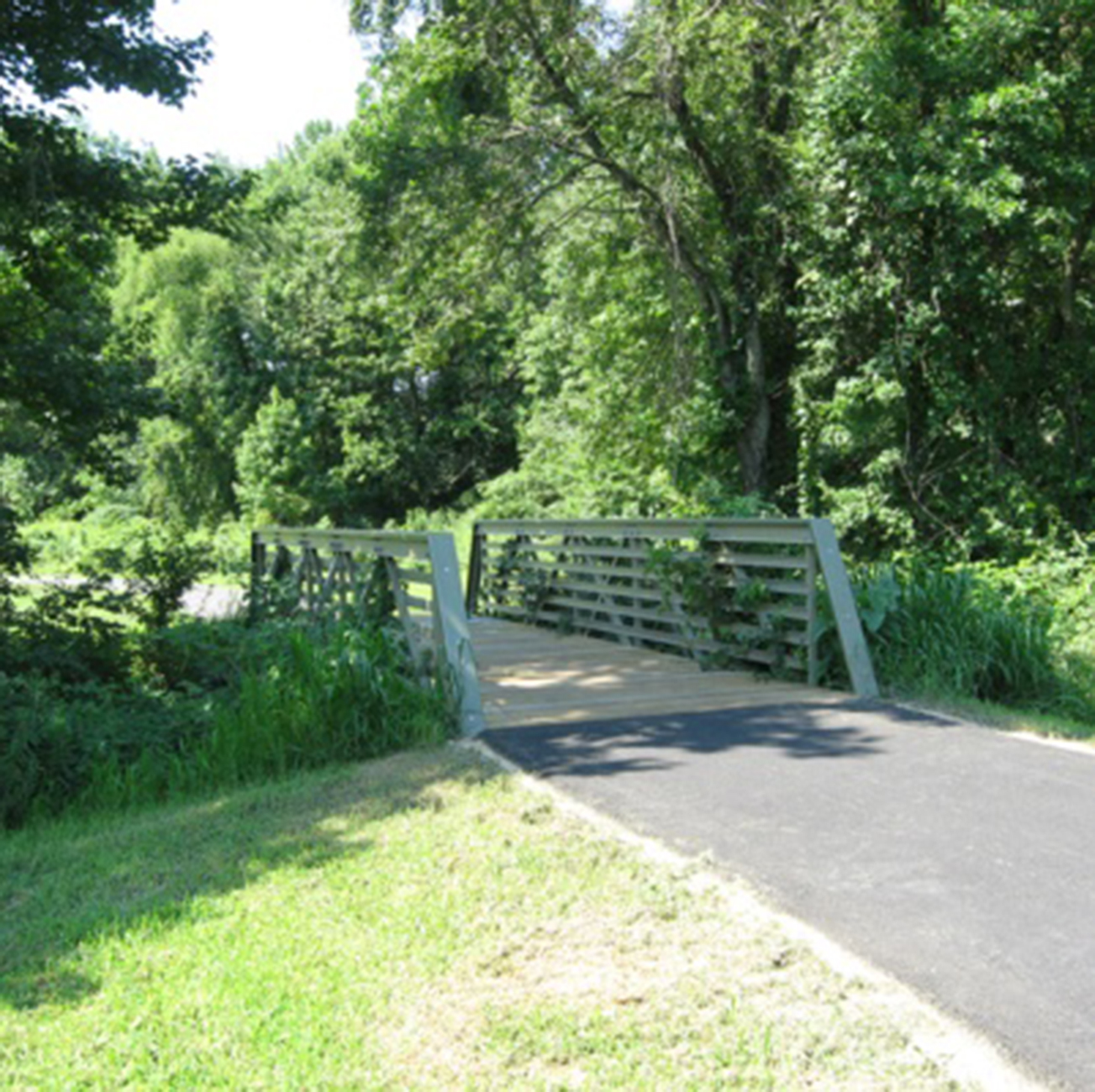

Coventry Park Sloped End Bridge
