Texas Transformation02-23-26 | Feature

Texas Transformation

Watters Creek Village at Montgomery Farm
by Mike Dahl, LASN - Photo Courtesy of: Chad Hatcher, Xtreme Heights Production (Except Where Noted)

In the Dallas suburb of Allen, a 52-acre, mixed-use development known as Watters Creek at Montgomery Farm was sold in 2022 to Charter Holdings, who planned to upgrade it into one of the area's premiere destinations. As part of that plan, Complete Landsculpture was brought on to revamp the outdoor environment whose existing framework - including the village green, walkways, pond, and creek - served as a starting point for their design analysis and design program. Then, working hand-in-hand with new ownership DuWest Realty and Jesse Wells, PLA, of inCon-trol Water Systems, the landscape design team freshened up the surroundings with fountains in the pond, amphitheater seating on the green, and an impressive lighting array.

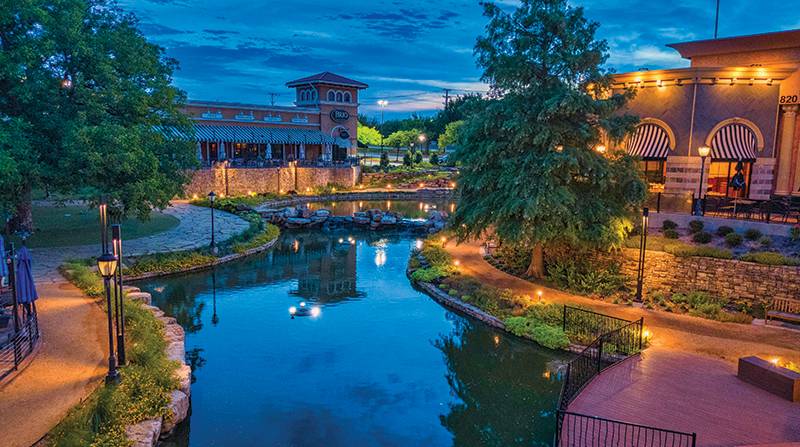

Extensive illumination is provided by Argent matte-black, 10-foot-tall post lights with 40W, 3000K lamps. SL01 uplights by Sterling Lighting were used to accent existing walls. The existing acorn post lights were left operable until all new lighting was up and running.

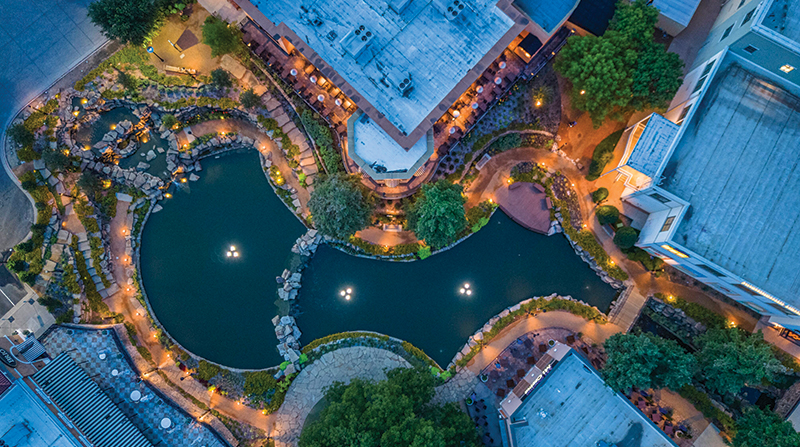

Lighting around the tiered water feature and pond included 15 spike-mounted path lights, 40 uplights, and 10 hanging lights. To power it all, the landscape team tapped into an existing electrical infrastructure that had enough circuits and amperage for both the lighting system and the new fountains in the pond, which was designed and built by local company inCon-trol Systems.

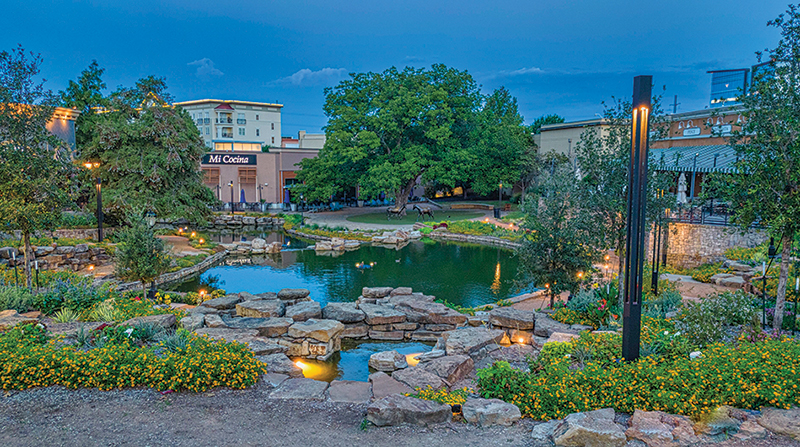

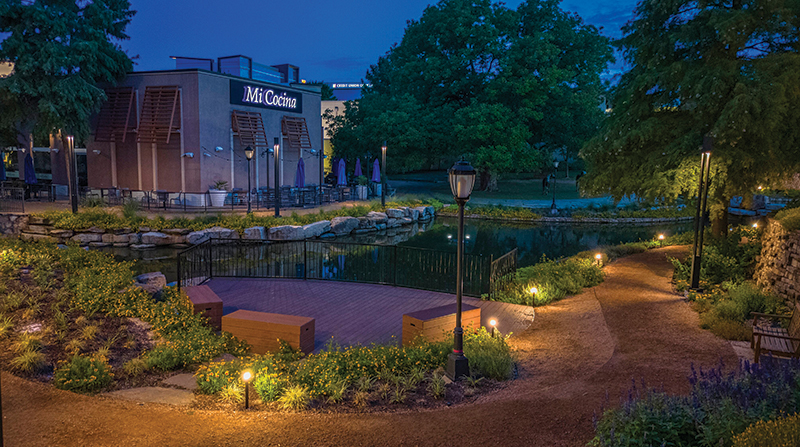

In total, 18 of the 10-foot-tall post lights were installed. Bordering the top-dressed and compacted decomposed granite pathway are 18-inch-tall bollards. The deck was built with composite, 4 ? 1/2 -foot linear boards made from pressure-treated timber to prevent rot. The railing was hand fabricated to match the bridge at the village green. The benches are also built with composite boards. The plantings include Lantana (Lantana Camara) and Salvia 'Mystic Spires' (Salvia longispicata x farinacea).

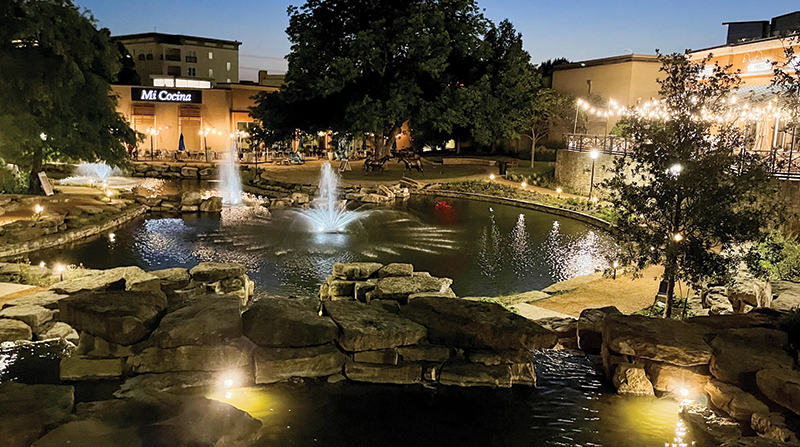

For about a month, the existing pond sat empty for maintenance purposes, which allowed for the installation of the three floating fountains with ? 1/2 horsepower motors, spray heights of 6, 12, and 14 feet, 9W white lighting arrays, and 12 underwater lights (SL08). PHOTO CREDIT: SANTOSH GEORGE, COMPLETE LANDSCULPTURE

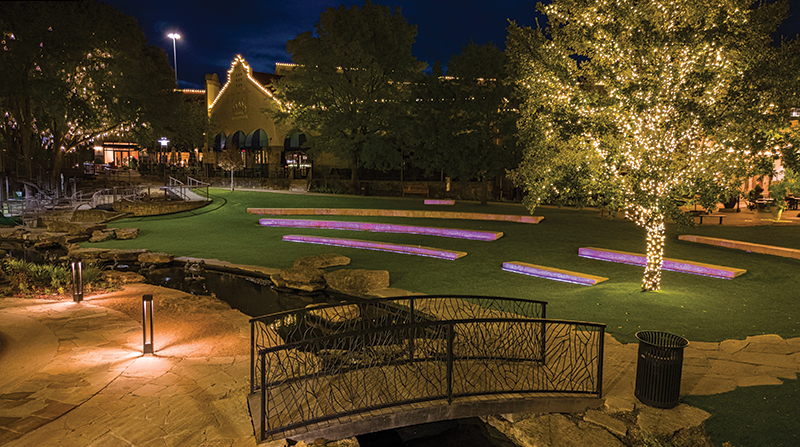

On the village green, the amphitheater seating made from blocks of quarry stone is illuminated by 1-inch-wide, LED RGBIC strip lights. The fourteen 40-inch-tall bollards with 30W, 3000K lamps were of the same design and source as the post lights. Landscape elements retained from the previous owners included the paved surface, the bridge, the boulders around the pond, and the trash receptacles.

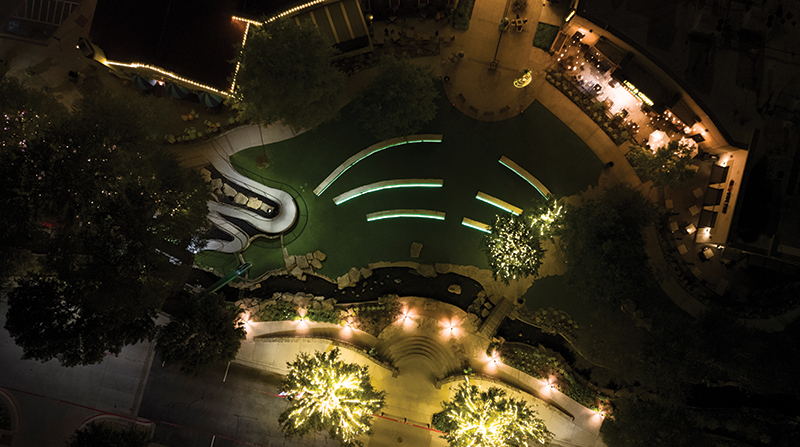

A total of 180 linear feet of strip lighting was installed at the bases of the block stone benches on the village green, which is surfaced with polyethylene, commercial-grade, artificial turf that was supplied and installed by local construction company Marshal Renee - Turf Pro. The existing ADA-compliant pathway to the left was refurbished by the contractor by excavating and compacting the stretch, then adding a 3-inch layer of decomposed granite that was further compacted.

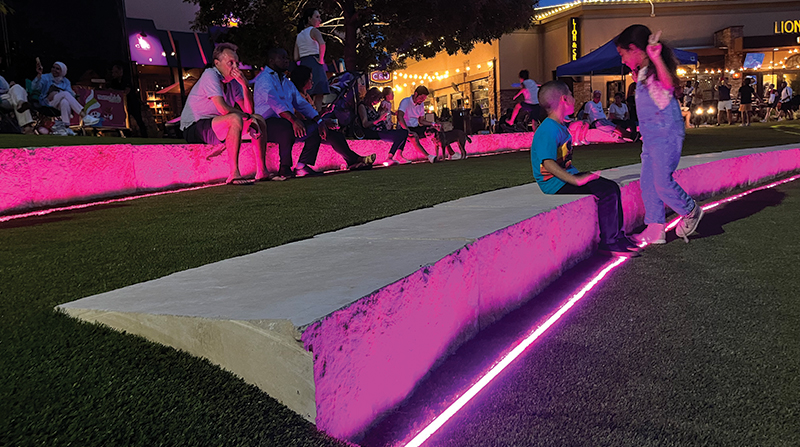

The LED strip lights - installed recessed in channels - were specified to be drive-over rated to stand up to pedestrian traffic, especially kids playing. A local provider supplied the three-foot-long Lueders limestone blocks set into the slope, which has a 3? 1/2 -foot draw. Besides being used as ADA compliant seating, the blocks help retain the slope. PHOTO CREDIT: SANTOSH GEORGE, COMPLETE LANDSCULPTURE

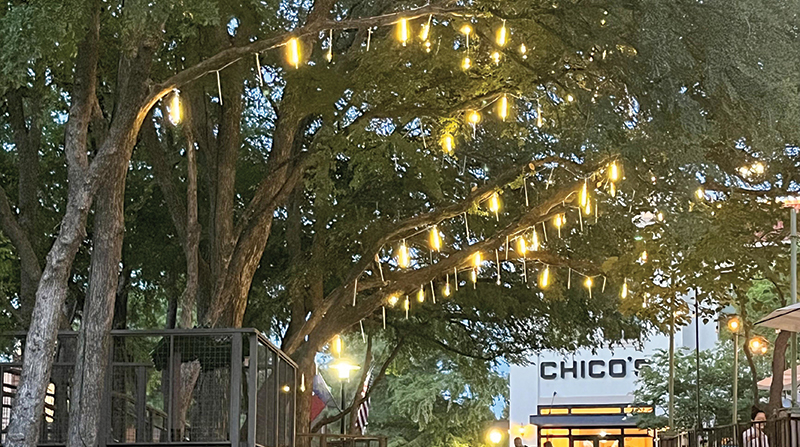

These meteor shower lights - part of the 100 Boxes of 50-foot strings that were specified - help enliven Canopy Walk, which provides a series of elevation changes that kids can navigate through the trees into different play zones. PHOTO CREDIT: SANTOSH GEORGE COMPLETE LANDSCULPTURE

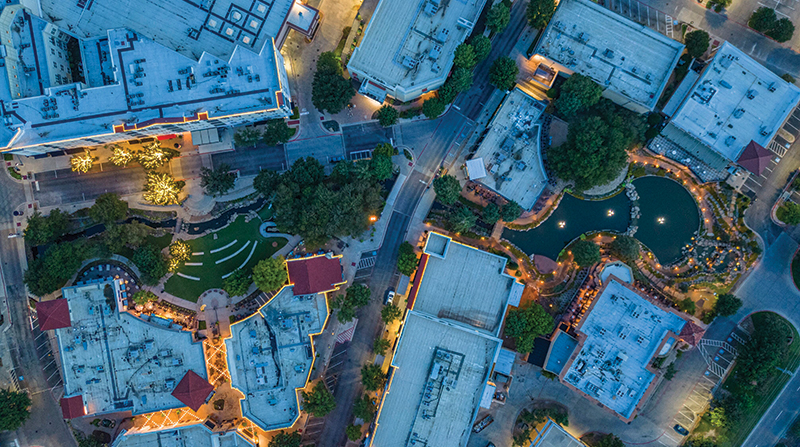

About 150 fixtures were specified by Santosh George and installed by Ruiz Electricals across the 5-acre portion that made up Complete Landsculpture's assignment. A focus on expedited material deliveries and installation procedures - along with meticulous organization - resulted in the work being completed three weeks ahead of schedule.

Watters Creek at Montgomery Farm in the Dallas/Fort Worth metroplex is a vertically dense, 52-acre site that became known in 2008 as a distinctive mixed-use development, but over a decade later, it needed some polish to regain its shine. Charter Holdings added the site to their portfolio of high-end properties in 2022 and called on Dallas-based landscape design-build-maintenance firm Complete Landsculpture to refashion the surrounding outdoor environment to attract more exclusive tenants. A guiding concept shaped by the new owner was to transform Watters Creek into the "Knox Street of the North" - a reference to a nearby shopping and dining destination that has been heralded as one of the area's "most luxurious and bustling urban enclaves" and "most strategically important retail corridors."

Scope and Size
Lead designer and project manager Santosh George, ASLA, explains, "The existing framework was there - the pond and creek, some of the walks, the village green - but it was all in an unmaintained condition when we started." So, George's team was tasked with modernizing the approximately five-acre landscape that fronted all built forms while maintaining the prevailing infrastructure for cost efficiency. Modifications included the addition of three separate fountains in the pond; a composite deck overlook with custom wooden benches; the relocation of an iconic sculpture from the central lawn, which was replaced by a tiered seating event space; a sustainable, Texas-themed planting theme emphasizing native plants; and Instagram-worthy landscape lighting installed throughout the site. Playing a pivotal role in the project, the landscape team worked closely with the new ownership and facility management company DuWest Realty to align their share of the site's renovation with the overarching project goals - and do so without interrupting the daily comings and goings of visitors and occupants.

Design Program
In shaping the design for the landscape makeover, it was crucial to understand the inimitable role that Watters Creek Village - as it is also known - had in the community as an asset to shoppers, workers, and residents. So, too, was the disclosure of challenges such as freeway noise, high sun exposure, and gusty wind due to a wind tunnel effect.



Allying with the new ownership's vision for a high-end, work/play/shop/dine destination, the plan was to convert the fatigued landscape into an aesthetically pleasing, year-round, engaging environment, thus helping to attract premium retail and restaurant outlets. "The developer owns a lot of property that is high-end, walkable, open, well-lit and landscaped with a lot of seating, and he told us, 'This is the quality I want to bring to Watters Creek Village,'" George relates.

So, creating a dynamic, perennial, activated landscape while retaining the base design placed a significant emphasis adding features that would contribute to the desired atmosphere, as well as enriching the ambience surrounding those new features a with dramatic illumination. Ultimately, painstaking organization ensured that every added attribute contributed to the overall appeal and functionality of the landscape.

Elements of Illumination
The stylish lighting renovation included ornate, 10-foot-tall post lights and 40-inch bollards from Evergreen Lighting as well as 'Falling Rain' decorative lights sourced from Holiday Aisle cascading from tree canopies. Sterling Lighting supplied uplights for plantings and retaining walls, spike-mounted path lights, bollards for walkways and stairs, and underwater lights for the pond and creek.

On the event lawn, Lueder stone blocks were used for amphitheater-style, tiered seating. Wi-Fi enabled, RGB strip lights were installed along the base of the stones to wash their faces with vibrant colors that can be programmed to change with the seasons or occasions. The strip lights are drive-over-rated to withstand the impact of spirited kids and adults. "At least two-to-three thousand people who live in the mixed-use development and surrounding neighborhood use this space frequently, so the village green becomes a play area, and one where people get engaged," states George.

Installing Intelligently
The decision to retain expanses of infrastructure helped guide the installation methods, which were executed with precision to ensure the seamless integration of new features, such as the synthetic turf and stone block seating on the village green. All material deliveries and labor movements were coordinated daily with the management to confirm that routine activities would not be interrupted. Local vendors and suppliers were used to accelerate material distribution, and in the end, the construction timetable resulted in project completion three weeks ahead of schedule - just in time for the village green to host the opening performance of the summer season for the Allen Philharmonic Orchestra. Other time-saving techniques included installing the fountains after the pond had been drained for required maintenance as well as keeping the existing pedestrian lights operational. The latter decision was not only for installation purposes but also for the benefit of shoppers, workers, and occupants until all the new lighting was up and running.

A Bright Future
"We aimed to create an inviting outdoor space connecting the built and natural environment that aligns with the 'Knox Street of the North' vision of the client," George sums up, adding, "The transformation of Watters Creek at Montgomery Farm exemplifies a holistic approach to landscape design. Balancing economic viability, environmental stewardship, and community enhancement, the project catalyzes positive change, fostering a sense of place and community."

Complete Landsculpture's role was pivotal in shaping a vital, welcoming and sustainable outdoor space that harmonizes with its distinct context, promoting the overall success of Watters Creek as a premier destination.

As seen in LASN magazine, February 2026.
