Usually packaged in a 50-lb. bag, a bonded fiber matrix is mixed in the tank of a hydraulic seeder. When sprayed on disturbed soil, the wood fibers, usually about 1/8 to 1/2 in. long, and soil particles form a matrix. This matrix extends to a depth of about 1/4 to 3/8 in. in the soil and is held together by a tackifier and a special bonding agent, which give the matrix its tensile strength. The bonding agent is the key to the durability and effectiveness of the product in controlling erosion. It ties the long-chain molecules of the bonding compound together. As with paint, this allows the bonded fiber matrix to mix and flow easily when wet and, when dry, to remain strong and insoluble to rain and stormwater runoff. The material retains water and reduces evaporation to enhance seed germination. Growing plants penetrate the material through the small voids in the matrix.

"A bonded fiber matrix can remain effective for an extended period of time, (two growing seasons in semi-arid regions,) until vegetation can be established to provide permanent erosion control," says Bill Agnew, Reveg Environmental Consulting, Lehi, Utah. He is a Certified Professional in Erosion and Sediment Control. This designation identifies individuals who have met rigorous experience and education requirements and have demonstrated expertise in erosion and sediment control planning. "This type of product applies nicely to provide a uniform cover over the soil," he says. "Although lacking the tensile strength of erosion control blankets, lab tests show it can control erosion equally as well or better than single and double netted straw or excelsior erosion control blankets. It can be a good choice when steep slopes or rocks, stumps and other debris prevent the use of erosion control blankets."

Benefits and Limitations

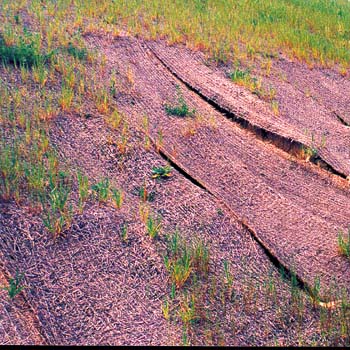

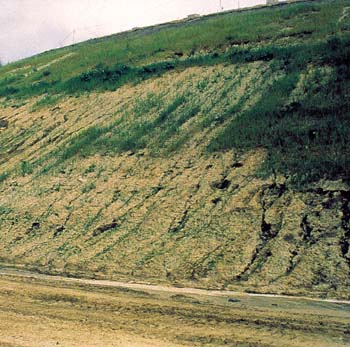

The severe rains caused underrilling with this blanket, resulting in significant soil loss and accumulation at the bottom of the slope.

Other advantages of a bonded fiber matrix:

• It can be applied on most slopes, including near-vertical surfaces.

• It retains moisture and reduces evaporation to enhance plant growth.

• Typically, it can control erosion for one growing season in humid climates and two or three years in arid conditions.

• It has no netting, which can trap or injure wildlife, and itis non-toxic to fish.

• It is biodegradable and decomposes into carbon dioxide, which plants use for photosynthesis, and water.

• It eliminates the time and expense of labor crews needed to install erosion control blankets.

• It also eliminates the possible loss of seed and fertilizer from foot traffic when installing erosion control blankets.

A bonded fiber matrix is designed to control erosion temporarily until vegetation can become established to provide permanent erosion control. It does not control erosion caused by massive slope failure, surface peeling and frost heaving. This material is not recommended for long-term or permanent erosion control without vegetation. Also, it is not suited for controlling erosion in channels or for preventing erosion from concentrated overland flows of water.

"In terms of price, bonded fiber matrix products are highly competitive with low-to-medium cost erosion control blankets," says Earl Dahlin, P.E., Fiber Marketing International, Renton, Wash. "Depending on type and amount of netting, installed cost of a straw blanket can range from about 75 cents per sq. yd. to about $1.15 per sq. yd. Material and labor costs to install a bonded fiber matrix vary with the rate of application. Typically, a 3,000-lb. per acre treatment costs about 65 cents per sq. yd., while a 4,000-lb. per acre application costs around 90 cents per sq. yd."

How It Is Applied

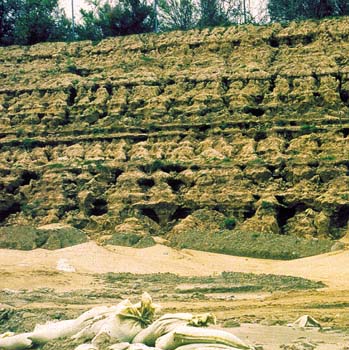

The Bonded Fibre Matrix "controlled erosion well" under these circumstances, according to Scott Johannes. While there was some rilling, soil loss was minor and no new earthwork was required before development proceeded.

"In arid parts of the country, 200 to 300 lb. of bonded fiber matrix is often applied with the seed and any other additives as a tracer to show the treated areas," Agnew says. "Then, the bonded fiber matrix is applied by itself over the seeding. However, whether or not you apply the bonded fiber matrix in a one-step or a two-step process, it's important that you shoot the product from two opposite directions. This prevents shadowing, in which stones, tree limbs and other obstructions block the spray, leaving an untreated area of soil behind them."

One bonded fiber matrix manufacturer requires spray coverage be at least 1/8-in. thick over the entire surface area, while allowing occasional voids of 1 mm. When the product is applied on 1.5:1 or steeper slopes or cut or fill slopes 20 ft. tall or higher, the slopes must be stabilized as the faces are exposed, as practical. Also, slopes with lateral seeps must be dry before being treated with the product. Depending on air temperatures and humidity, the bonded fiber matrix usually cures in about 4 to 24 hours, generally 4 to 8 hours. Normally, the product can also set up to protect a new seeding even when applied at near-freezing temperatures.

The Costs of Failure

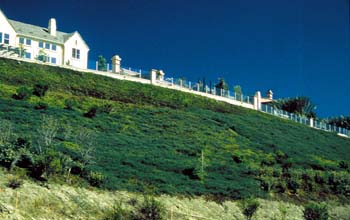

This slope from Bonita Canyon in Irvine, Calif. was treated with grass seed and EcoAegis Bonded Fiber Matrix in October 1997. As this July 2000 photo shows, the only treatment required after the massive rains in 97/98 was installation of groundcover plants. At the bottom of the slope new work is being done during road development.

Any developer or other property owner in the state must have a permit from the California Water Quality Control Board to disturb five or more acres of land. That permit requires the owner to control erosion and to keep any disturbed sediment on site. Otherwise, the owner faces some hefty fines-$10,000 per day of violation. If sediment from a construction site pollutes a stream for three days, the maximum fine would be $30,000, or $10 per gallon for all polluted water in excess of 1,000 gal. that leaves a site. These fines are in addition to any penalties local authorities assess for allowing sediment to wash or blow off site.

Field Results

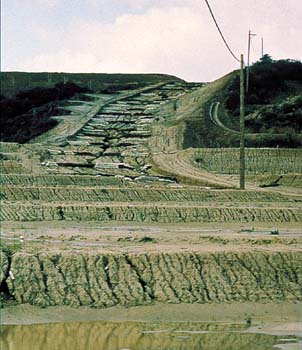

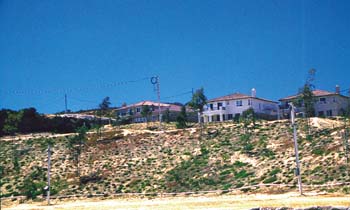

At Serenata, in Irvine, Calif., the slopes treated with the bonded fiber matrix showed no erosion after the rains, but the untreated flat areas and roadways required significant labor to control run off and rework to bring the areas back to building standards.

One of these projects was installed at Serenata, a residential development in Carlsbad. In November 1997, about two acres of disturbed, very erosive soils were treated with EcoAegis, a bonded fiber matrix, to protect them from erosion over the winter until construction resumed in the spring. The 2:1 or slightly steeper slopes varied in length from about 100 to 150 ft.

The bonded fiber matrix was applied at the rate of 3,500 to 4,000 lb. per acre with 50 lb. per acre of Plantago insilarus seed. The plantago was used as a temporary measure to bolster the protection provided by bonded fiber matrix until the plants with their soil-holding roots died out after about three months.

The slopes treated with the bonded fiber matrix held up well throughout the rainy winter as evidenced by little, if any, sediment at the bottom of the slopes as spring weather returned. By contrast, nearby untreated slopes eroded causing such problems as deep rills, failed silt fences and mud slides, which had to be repaired.

• Site 2

His plan was based on a soil engineer's drawings that showed areas of three distinct types of soil on the mostly 2:1 slopes. Sullivan specified a straw-coconut erosion control blanket to protect soils considered highly erodible; EcoAegis, the bonded fiber matrix, to control the erodible soils; and a hydraulically-applied gypsum-based product to treat slopes considered least likely to erode.

To control erosion on the erodible soils, a 20-lb. per acre mixture of two annual grasses - California brome and small fescue - plus 200-lb. per acre of starter fertilizer and 500-lb. per acre of EcoFibre a wood-fiber mulch were applied in October 1997. Then, EcoAegis, a bonded fiber matrix, was sprayed over the seeding at the rate of 3,400 lb. per acre.

The following February, the hydraulic seeding contractor re-applied the gypsum cementitious binder to about five previously treated acres and re-sprayed the bonded fiber matrix on about 1.5 of the acres originally treated with that product. By April, the area where the erosion control blankets were installed in the fall had experienced erosion and required some remedial repair. Parts of the area treated with the gypsum product had also eroded. Meanwhile, the slopes sprayed with the bonded fiber matrix showed little erosion and the annual grasses had become established.

• Site 3

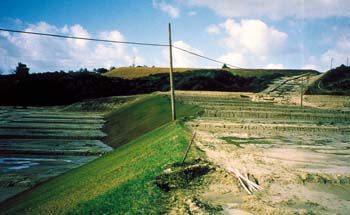

At Serenata, in Irvine, California, the slopes treated with the bonded fiber matrix showed no erosion after the rains, but the untreated flat areas and roadways required significant labor to control run off and rework to bring the areas back to building standards. The Bonded Fiber Matrix controlled erosion well.

A Way to Meet Tougher Requirements

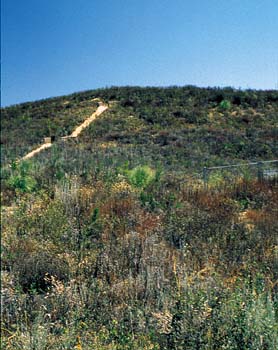

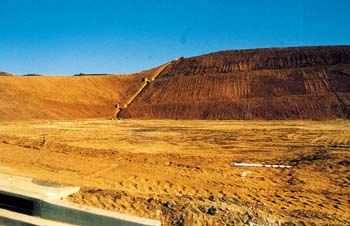

The owners of this industrial site in Moorpark, Calif. wanted the perimeter returned to as natural a condition as possible after excavation. In the fall of 1997, these cut slopes were hydroseeded with EcoAegis and native grass and broadleaf seed, prior to the rains expected during the El Niño event.

As the three California projects demonstrate, a bonded fiber matrix can be an effective tool for controlling erosion on slopes under very difficult conditions. This type of product can reduce stormwater runoff, save soil and seed and help boost seed germination rates. It is more effective than a standard hydraulic application of seed and mulch. It offers similar, if not better, performance to some types of erosion control blankets. What's more, a bonded fiber matrix can be applied much faster and easier and without the special site preparation and labor required to install erosion control blankets.

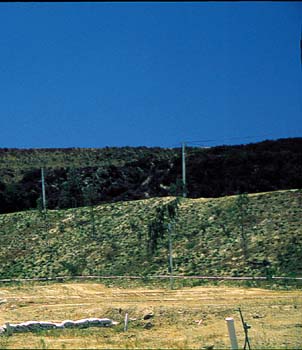

The treatment protected the slopes from the subsequent severe rains, including one episode where 7 inches of rain was recorded in one hour. Soil erosion was minimal, and germination of the native plants excellent. No further work was required on this site.
