Tractors, and their immediate relatives, have played a large part in shaping the modern world. Their history can be traced back to the early to mid 1800s with the first machines being steam-powered plows. And though they may always be most closely connected to agriculture, tractors have been found to be of great use in other fields, pun intended, including landscaping and construction. The classic models are often referred to as utility tractors, and some younger cousins that show a close family resemblance are called, among other names, tractor loaders, backhoe loaders and wheel loaders. The following spec rundown will look at all these varieties, and because landscape professionals tend to opt for, and manufacturers tend to target the industry with, the compact models of those varieties, that is where the focus is here. But first, a couple of notes. "Compact" tractor loaders, backhoe loaders and wheel loaders are much larger than compact utility tractors so a direct comparison is not practical. On the smaller side, sub-compact utility tractors, again because of their value to the industry, are also included in this rundown. As for what distinguishes a sub-compact model from a compact one, Kubota, which states to have created the sub-compact market category in 2000, places the dividing line after a model that weighs 1,570 pounds. However TYM lists a 3,108-pound model as a sub-compact (though we have it in the compact category here). One of the biggest advantages of traditional tractors is that they tend to have rear power take-off systems or PTOs that can provide rotary power to attachments that may be stationary or pulled. And to make utility tractors better suited for the landscape industry, different tires are usually available. A common configuration for tractors used in landscaping is to be outfitted with a front loader, which are an add-on most of the time but integral to wheel loaders, tractor loaders and backhoe loaders, so when pricing the utility tractors, we included a front loader in the price. Also, on the pricing found here: LC/DBM arrived at the numbers through the manufacturers, and when not available, by researching online equipment sales sites, dealer price lists and other sources. Actual prices may vary of course depending on numerous circumstances so caution should be exercised when comparing these numbers. And where multiple loader specs were listed for a given model, the largest figure was used - where multiple weights were listed, the smallest was.

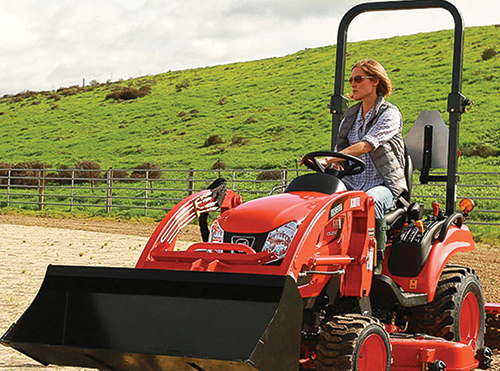

TKioti Price: $12,400 Model: CS2210 Engine: S773L-F21 diesel with pressurized radiator Horsepower: 21.1 Weight: 1,485 lbs. Wheelbase: 55.1" Lift Capacity: 675.3 lbs. Lift Height: 71.3" Breakout Force: 1,332 lbs. Special Features: Twin HST pedals, mid PTO, 4WD. Website: www.kioti.com/products/tractors/cs-series/cs2210
TYM Price: $14,500 Model: T254 Engine: Yanmar 3TNV80F Horsepower: 24 gross Weight: 1,638 lbs. Wheelbase: 57.5" Lift Capacity: 722 lbs. Lift Height: 75.3" Breakout Force: 1,190 lbs. Special Features: Cast iron, hydrostatic transmission with 2-range speed control, cruise control. Website: www.tym-tractors.com/tractors/t254-compact-utility-tractor

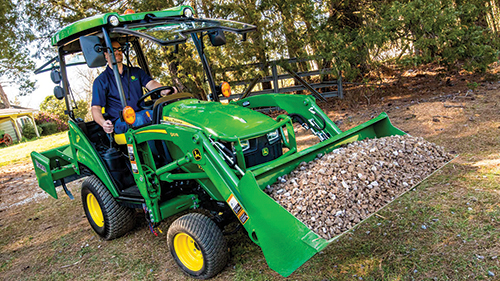

John Deere Price: $17,907 Model: 1025R Engine: Yanmar 3TNV80F-NCJT diesel Horsepower: 23.9 Weight: 1,444 lbs. Wheelbase: 57.1" Lift Capacity: 836 lbs. Lift Height: 71.2" Breakout Force: 1,819 lbs. Special Features: Hydrostatic transmission with Twin Touch™ foot controls, optional iMatch™ quick-hitch feature. Website: www.tinyurl.com/yam442u7

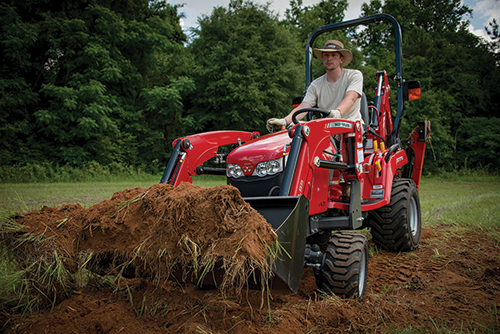

Massey Ferguson Price: $18,867 Model: GC 1710 Engine: 2-side, 3-cylinder diesel Horsepower: 22.5 Weight: 1,433 lbs. Wheelbase: 57.1" Lift Capacity: 870 lbs. Lift Height: 72.8" Breakout Force: 920 lbs. Special Features: Backhoe comes as standard equipment and features a fully integrated four-point sub-frame, large-diameter cylinders, and boom float control. Website: www.tinyurl.com/y88mo3a4
Kubota Price: $19,782 Model: B2680 Engine: Kubota D1005 diesel Horsepower: 25.5 Weight: 1,521 lbs. Wheelbase: 55.1" Lift Capacity: 739 lbs.

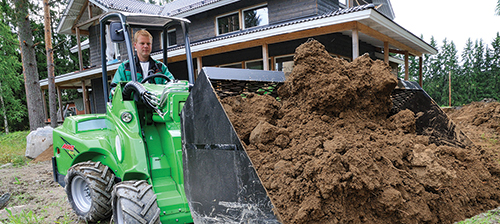

Avant Tecno Price: Mid-$20,000s Model: 420 Engine: Kubota D722 diesel Horsepower: 20 Weight: 980-1,030 lbs. Wheelbase: 43.3" Lift Capacity: 1,210 lbs. Lift Height: 108.3" Special Features: Articulated body, telescopic boom comes standard. Website: www.avanttecno.com/www/us/machines/400-series

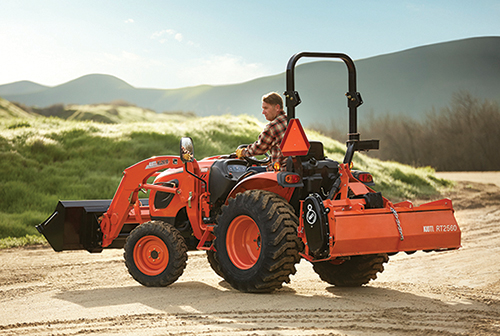

KIOTI Price: $17,450 Model: CK2610 Engine: 3A165LWM-U ECO-friendly diesel Horsepower: 24.5 Weight: 2,646 lbs. Wheelbase: 65.7" Lift Capacity: 1,252 lbs. Lift Height: 98.4" Breakout Force: 2,110 lbs. Special Features: Power Steering, 9x3 manual transmission. Website: www.kioti.com/products/tractors/ck10-series/ck2610
Kubota Price: $18,497 Model: B2601 Engine: Kubota D1105 E-TVCS Diesel Horsepower: 25.5 Weight: 1,632 lbs. Wheelbase: 61.4" Lift Capacity: 948 lbs. Lift Height: 78.5" Breakout Force: 2,144 lbs. Special Features: Hydrostatic 3-range transmission, tilt steering wheel, telescoping stabilizers. Website: www.kubota.com/product/BSeries/B2301.aspx

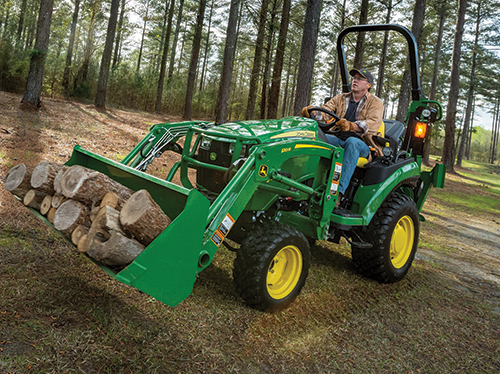

John Deere Price: $19,737 Model: 2025R Engine: Yanmar 3TNV80F-NCJT diesel Horsepower: 23.9 Weight: 1,793 lbs. Wheelbase: 63" Lift Capacity: 1,027 lbs. Lift Height: 78.5"Breakout Force: 2,363 lbs. Special Features: Hydro transmission with TwinTouch™ pedals, optional iMatch Quick-Hitch implement hookup, cruise control. Website: www.tinyurl.com/y834scdb

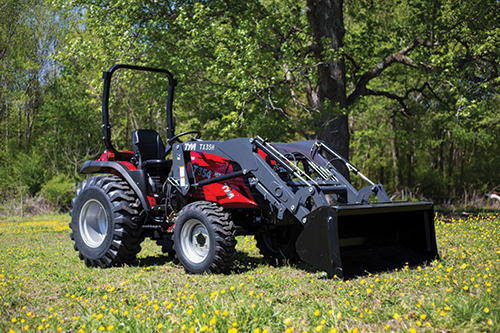

TYM Price: $21,050 Model: T354 Engine: Yanmar 3TNV88C-KKTF Horsepower: 34.2 Weight: 3,108 lbs. Wheelbase: 64.5" Lift Capacity: 2,166 lbs. Lift Height: 102.3" Breakout Force: 3,435 lbs. Special Features: Cruise control mode, hydrostatic transmission, heated cabin. Website: www.tinyurl.com/yb3rn22b

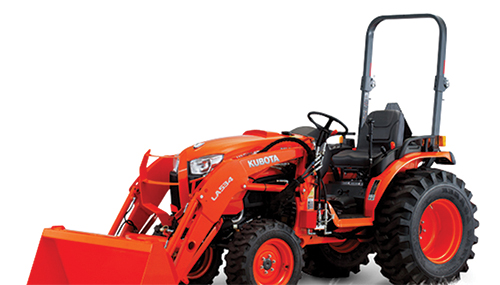

Kubota Price: $22,169 Model: B3350SU Engine: Kubota V1505-T-E4-D26-R E-TVCS diesel Horsepower: 33 Weight: 1,874 lbs. Wheelbase: 65.6" Lift Capacity: 1,146 lbs. Lift Height: 84.6" Breakout Force: 2,321 lbs. Special Features: Hydraulic power steering, HST 3-range transmission, tool box. Website: www.kubota.com/product/b3350SU/B3350SU.aspx

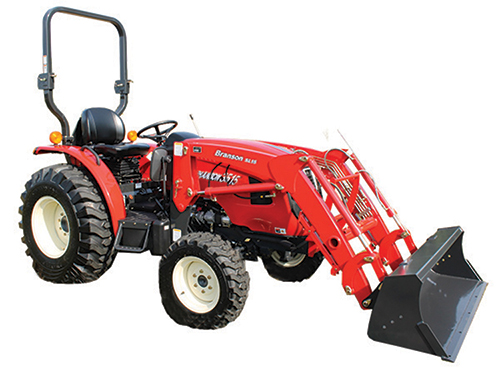

Branson Price: $22,500 Model: 3515R Engine: Vertical, water cooled diesel Horsepower: 35 Weight: 3,014 lbs. Wheelbase: 65.78" Lift Capacity: 1,835 lbs. Lift Height: 98.4" Breakout Force: 3,456 lbs. Special Features: Hydrostatic steering, 4-wheel drive, cast iron frame and body. Website: www.bransontractor.com/Series/15-Series/Tractors/3515.aspx

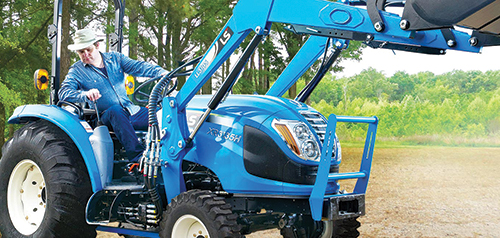

LS Price: $23,100 Model: XR3135H Engine: 4-Cylinder, CRDI, water-cooled turbo diesel Horsepower: 35 Weight: 3,285 lbs. Wheelbase: 66" Lift Capacity: 2,178 lbs. Lift Height: 92.7" Breakout Force: 3,450 lbs. Special Features: Dual pedal, 3-range hydrostatic transmission, power steering, fender mounted joystick for front end loader. Website: www.lstractorusa.com/products/compact-tractors/xr-series

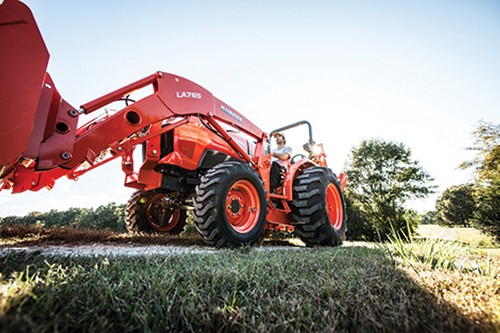

Kubota Price: $23,974 Model: L4701 Engine: Kubota direct injection vertical diesel Horsepower: 47.3 Weight: 3,307 lbs. Wheelbase: 72.8" Lift Height: 105.2" Lift Capacity: 1,684 lbs. Special Features: Hydraulic power steering, HST transmission or gear drive with synchro-shuttle, bevel gear front axel (4WD model). Website: www.kubota.com/product/L3301/L3301.aspx

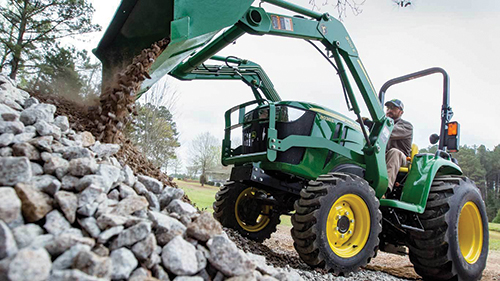

John Deere Price: $26,355 Model: 3038E Engine: Yanmar 3TNV86CT-NJT diesel Horsepower: 36.7 Weight: 2,222 lbs. Wheelbase: 62.8" Lift Capacity: 1,186 lbs. Lift Height: 84" Breakout Force: 1,704 lbs. Special Features: Standard four-wheel drive, hydro transmission with Twin Touch™ pedals, on-board diagnostics, optional iMatch Quick-Hitch implement hookup. Website: www.tinyurl.com/ycwfzff4

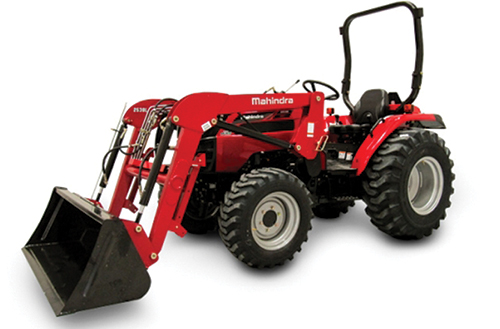

Mahindra Price: $27,490 Model: 2538 HST Engine: Mahindra common rail diesel (mCRD™) Horsepower: 37.4 Weight: 3,130 lbs. Lift Capacity: 1,634 lbs. Lift Height: 101.4" Breakout Force: 2,696 lbs. Special Features: Diesel oxidation catalyst (DOC) on engine instead of diesel particulate filter (DPF), hydrostatic power steering. Website: www.mahindrausa.com/tractors/2500-series/2538-hst
Massey Ferguson Price: $38,177 Model: 1742 Engine: 1.7L 3-cylinder diesel Horsepower: 41.6 Weight: 3,803 lbs. Wheelbase: 71.1" Lift Capacity: 1,840 lbs. Lift Height: 102.4" Breakout Force: 2,190 lbs. Special Features: Electronic 3-range hydrostatic transmission, 12X12 power shuttle, optional mid PTO. Website: www.tinyurl.com/ydhpmu22
