Get A Load of These Attachments!

LC/DBM HorsePower - March 2013
When installing projects you'll want to make sure you have the right loader to move and grade the dirt. Likewise, you'll also want to specify attachments that help you get the job done. For your convenience, these loaders and attachments have been arranged by cost.

Terex
Model No.: PT-110 Forestry compact track loaders
Engine: 4-cyclinder, turbo-powered Perkins Tier 4i diesel engines
Horsepower: 111
Dimensions: 6-ft profile, 14.8-in ground clearance and 4.3-psi ground pressure
Weight: 12,100 lbs.
SAE Load Capacity: 4,300 lbs. operating capacity at 50% tipping load capacity
Special Features: Diesel particulate filter and after-cooled Tier 4i-compliant engine for improved performance, a hydraulic fan cooling system for efficient cooling and more production, as well as an open design for ease of access to all critical components to enhance serviceability.
Warranty: 1 year manufacturer's
Cost: $80,707
Visit vendor profile here.

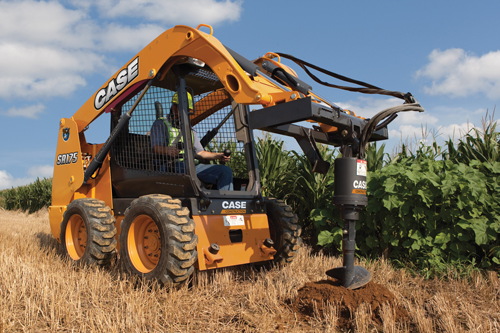

Case Construction
Model No.: SV175 Tier 4 Final Certified
Engine: ISM N844LTA, diesel 4 cylinder turbo charged and after cooled
Horsepower: 67 (gross), 64 (net)
Dimensions: 153.4" H x 105.7" L x 64" W
Weight: : 6,270 lbs.
SAE Load Capacity: : 1,750 lbs.
Special Features: Tier 4 Final, wider range of controls, including standard hand controls, optional foot controls and switchable electro-hydraulic controls. With industry-leading breakout force, this powerful machine is great for digging, prying and pushing.
Warranty: 1 year / unlimited hour full coverage base
Cost: $40,639
Visit vendor profile here.

Takeuchi
Model No.: TS70R skid steer
Engine: Perkins/804D-33T, turbocharged
Horsepower: 74
Dimensions: 7' H x 11' 11.7" L x 6' W
Weight: 7,450 lbs.
SAE Load Capacity: 2,000 lbs.
Special Features: Available in vertical lift; tilt-up operator station with pilot operated joystick controls; radial boom design and mechanical quick coupler; machine monitoring system w/ tachometer, fuel, and coolant temperature gauge; 12 volt system with 90 amp alternator.
Warranty: 1 year, unlimited hours
Cost: Canopy $39,960, Cab with heat only, tires, standard seat $43,149
Visit vendor profile here.

Struck
Model No.: MH8000
Engine: V twin cylinder air-cooled gasoline engine with overhead valves, electric
Horsepower: 31
Dimensions: 7/8" diameter on Idlers; 1-3/16" diameter on Track Sprockets
Weight: 2,100 lbs.
SAE Load Capacity: Torque of 48 ft./lbs.
Special Features: Dual pump hydraulic system with expandable attachment control valve. Track shoes not included. Dual halogen lights and basic five bank control valve.
Warranty: 1 year
Cost: $18,233
Visit vendor profile here.

CEAttachments, Inc.
Model No.: EDGE M48SF
Horsepower: Requires only 16-21 gpm
Dimensions: 62" overall width, 48" working width, 1" digging depth
Weight: 1,425 lbs.
Special Features: This powerful mulcher can run on standard-flow skid steers and efficiently cut through and mulch overgrown and invasive brush and small trees. Features 96 carbide-tipped teeth with 6 staggered rows around the rotor, a safety pusher bar to knock trees down into the rotor, skid shoes to keep grinding at ground level or up to 1" below grade.
Warranty: 1 year
Cost: $17,600
Visit vendor profile here.

EZ Spot UR Attachments
Model No.: Heavy Duty Pole Setter EZ-HD08
Dimension: Maximum opening 21", minimum closing 5"
Attachment Weight: 1,400 lbs.
SAE Load Capacity: 2,500 lbs.
Special Features: Pull, set and pile poles with one man operation to perform job application with 115 degrees rotation.
Warranty:1 year
Cost:$9,924
Visit vendor profile here.

Ammbusher Inc.
Model No.: DL-66
Horsepower: 30 to 65 HP required at skid loader auxiliary hydraulics (20-45 gpm)
Dimensions: 79" W, 80" L, 66" cutting width
SAE Load Capacity: 1,750 lbs.
Special Features: Two replaceable steel front shoes, 1" steel cross bar, 4-12" dual sided rotary axe blades, bi-directional direct-drive gear motor.
Warranty: 1 year limited warranty
Cost: $8,600
Visit vendor profile here.

Danuser
Model No.: SM40
Engine: Hydraulic Requirements 1,500-3,000 PSI
Horsepower: N/A Hydraulic Driven
Dimensions: 45.5" L x 25.5: W x 64" H
Weight: 1,100 lbs.
SAE Load Capacity: Impact force of 82,000 lbs.
Special Features: Drives fence posts, sign posts, guard rails, median dividers, tent stakes, T-post, pipe fence, and railroad ties with ease. It has a 40" drop hammer design. With this innovative design, you can achieve a full stroke with every cycle, or utilize the short stroke feature to fine tune your depth.
Warranty: 1 year
Cost: $7,495 with tilt and grapple
Visit vendor profile here.

Land Pride
Model No.: SSG2584 Stump Grinder
Engine: Skid steer mounted e
Horsepower: 17-32 gpm
Dimensions: 60" overall length, 48" overall mounting width
Weight: 540 lbs.
Special Features: Stump Grinder turns large stumps into small chips. It features durable carbide teeth mounted to a 1/2" cutting wheel that spins up to 1,100 rpm. Fully controllable from inside the cab, this unit has a maximum cutting arc of 55 degrees and depth of 8" below ground.
Warranty: 1 year parts and labor
Cost: $5,641
Visit vendor profile here.

General Equipment Co.
Model No.: 671 DIG-R-TACH Series 16
Engine: Attachment (auxiliary hydraulic system of carrier vehicle serves as power source)

SnowEx, a division of TrynEx Int'l
Model No.: Mini Pro SP-575 spreader
Engine: Attachment - powered by 12-volt DC direct-drive
Horsepower: N/A
Dimensions: 20.5" L x 38" W x 35" H
Weight: 460 lbs. material capacity
Special Features: SSH-175 skid-steer mount; one-piece polyethylene hopper construction.
Warranty: 2-year parts and labor; 5-year transmission gear
Cost: $1,640
Visit vendor profile here.

Earth & Turf Products
Model No.: F1000, F2000, F3000, F4000 & F6000
Dimensions: 32" (F1000), 36" (F2000), 42" (F3000 & F4000), 49" (F6000)
Weight: 90 - 275 lbs. per pair
SAE Load Capacity: 1000 lbs., 2000 lbs., 3000 lbs., 4000 lbs. & 6000 lbs.
Special Features: Clamp-on bucket edge
Warranty: 1 year parts and labor
Cost: $390 to $995 per pair
Visit vendor profile here.
