LCN November 2008 Horsepower: Put the Skid on these Loaders02-03-09 | News


Put the Skid on these Loaders

LCN Horse Power - November 2008
Click on the image or title below to find to more information about the Product

Skid loaders have revolutionized the industry, and today they are often the most indispensable piece of equipment on the job. With their maneuverability, versatility, and array of attachments, skid loaders can perform many different tasks. That?EUR??,,????'?????<

virtuallawn.gif virtuallawn.gif virtuallawn.gif
Caterpillar Manitou North America Volvo Construction Equipment
virtuallawn.gif virtuallawn.gif virtuallawn.gif
Yanmar America Corporation Case Construction Equipment Mustang Mfg.
virtuallawn.gif virtuallawn.gif virtuallawn.gif
ASV Inc. Compact Power Ramrod Equipment
virtuallawn.gif blank-150.jpg blank-150.jpg
Ditch Witch Ventrac by Venture Products, Inc.



Click to view larger image
Return to Top

Caterpillar
Model No.: 299C
SAE Load Capacity: 4,150 lbs.
Operating weight: 10,730 lbs.
Engine: Cat C3.4T
Horsepower: 90 HP
Maximum speed: Two speed option 5 and 8.5 mph
Dimensions: 78'' W
Warranty: 1 year/1,500 hours
Cost: $69,695


Click to view larger image
Return to Top

Manitou North America
Model No.: SLT 415 B
Horsepower: 52 HP
SAE load capacity: 3,000 lbs.
Dimensions: 75'' H x 124'' L x 66'' W
Maximum Speed: 8 mph
Attachments: All skid steer
attachments
Special features: Manitou patented JSM joystick
Warranty: 1 year
Cost: $57,450


Click to view larger image
Return to Top

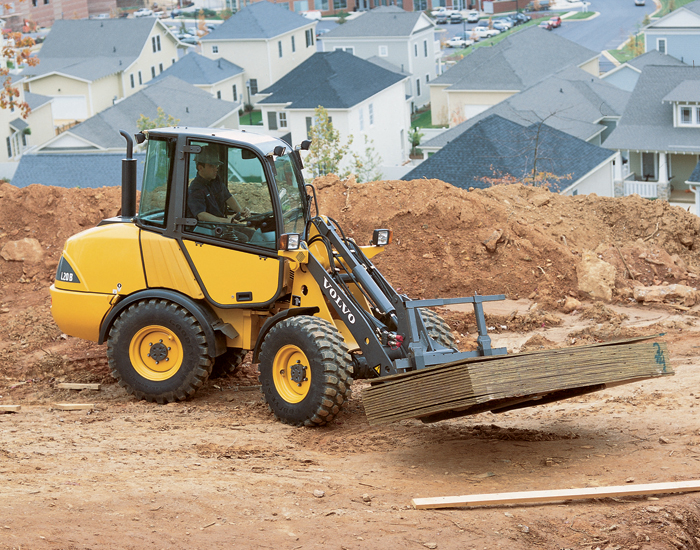

Volvo Construction Equipment
Model No.: L20B
Horsepower: 54 HP
SAE Load Capacity: 7,055 lbs.
Dimensions: 98'' H x 200'' L x 68'' W
Maximum Speed: 12.4 mph
Attachments: Over 60 plus
Special Features: Separate working and steering hydraulics, 100 percent front and rear differential locks, center point articulation oscillation joint, 100 hour oil change intervals, same oil in hydraulics and engine, easy ground level servicing. Warranty: Many different types
Cost: $54,000


Click to view larger image
Return to Top

Yanmar America Corporation
Model No.: 4TNV88-BNKAH
Horsepower: 40.4 HP
SAE Load Capacity: 7,451 lbs.
Dimensions: 8'3'' H x 5'7'' W x 14'5'' L
Maximum Speed: 11.8 mph
Attachments: Can be equipped with an optional mechanical Quick-Coupler that fits most skid steer attachments.
Special Features: The two new loader designs are built around quiet, reliable, fuel-efficient Yanmar diesel engines.
Warranty: 3 Years / 3,000 Hours
Cost: V4-6 Canopy with bucket - $47,351; V4-6 Cabin with bucket - $52,351


Click to view larger image
Return to Top

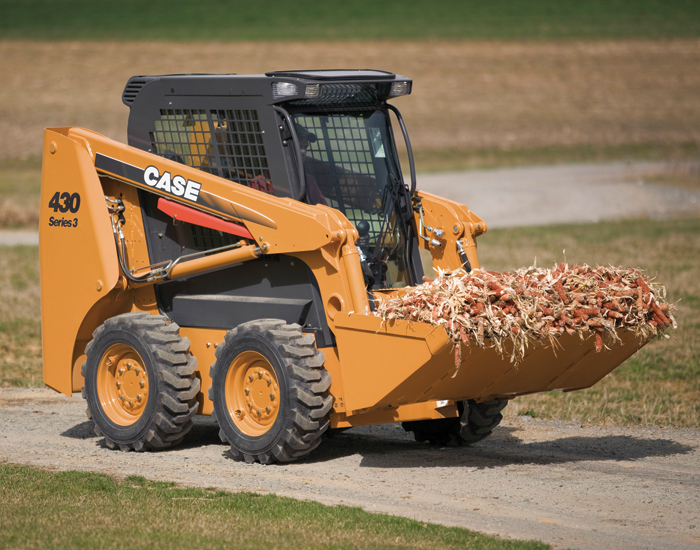

Case Construction Equipment
Model No.: 430 Series 3
Horsepower: 77 HP
SAE Load Capacity: 2,000 lbs.
Dimensions: 129.4'' L x 66'' W (equipped with 66'' foundry/excavating bucket) x 80'' H to top of ROPS structure.
Maximum Speed: 12.6 mph with optional two speed.
Attachments: Augers, tree spades, landscape rakes, specialty buckets, preparators, stump grinders, pallet forks, chippers, dozer blades, backhoes, Harley rakes, brooms and more. Special Features: 400 Series 3 models feature more powerful, Tier III certified, turbocharged engines, a completely redesigned cab and improvements in serviceability.
Warranty: 1 year machine and 2 years/2,000 hours on power train
Cost: Starting at $34,600


Click to view larger image
Return to Top

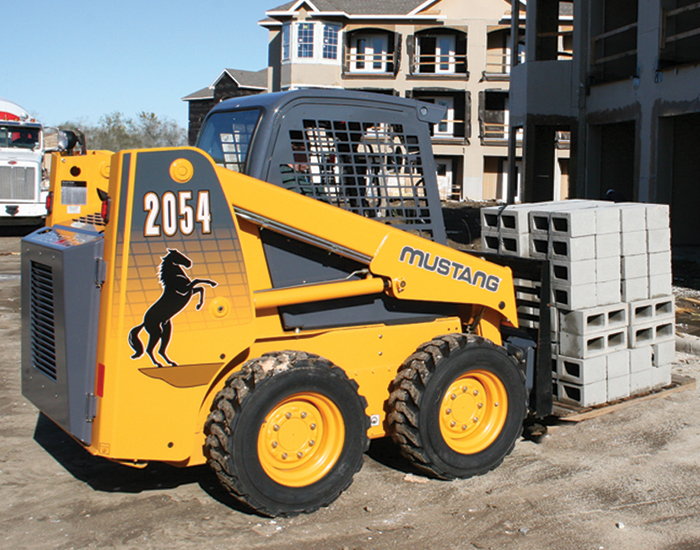

Mustang Mfg.
Model No.: 2054
Horsepower: 49 HP
SAE Load Capacity: 1,650 lbs.
Dimensions: 122.5'' L x 77.7'' H x 60.4'' W
Maximum Speed: 7.2 mph
Attachments: Multi-Tach mounting system is designed to accept most two-pin attachments on the market today.
Special Features: Three available steering modes, T-Bar Steering, foot controls, dual-lever steering, foot controls, dual-lever steering, hand controls
Warranty: 1 year/1,000 hours
Cost: $31,000


Click to view larger image
Return to Top

ASV Inc.
Model No.: ST-50
Size: 66'' W x 72'' H x 117'' L
Horsepower: 50 HP
Maximum speed: 11 mph
SAE Load Capacity: 4,000 lbs. bed capacity
Special Features: Only 2.38 psi, 5,000 lbs. towing capacity, three different exclusive track options and 30-gallon fuel tank.
Attachments: Optional accessories include auxiliary hydraulics, front and rear; back-up alarm; bed rails; brush guards for personnel carrier; canopy and rear window; dump box.
Warranty: 1 year
Cost: $29,000 to $39,000


Click to view larger image
Return to Top

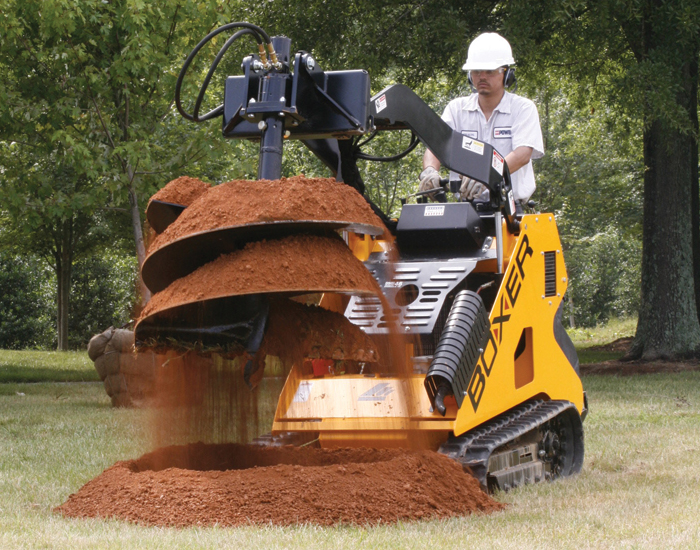

Compact Power
Model No.: 526 DX
Horsepower: 26.1 HP
SAE Load Capacity: Operating capacity (at 50 percent of tip load) 1,050 lbs.; tip capacity 2,100 lbs.
Dimensions: 54'' H x 77'' L w/o bucket, 96'' w/ bucket x 43.5'' W fully extended, 35'' fully retracted
Maximum Speed: 3.7 mph
Attachments: Trenchers, standard buckets, 4-in-1 buckets, auger power heads and bits, adjustable forks, carry all/levelers, angling blades, landscape power rakes and many more. Special Features: Boxer offers an integrated track-widening system. The variable track offers a fully extended width of 43.5'' and a retracted width of 35''
Warranty: 1 year
Cost: About $23,000


Click to view larger image
Return to Top

Ramrod Equipment
Model No.: M915-AKG (Track)
Horsepower: 23 HP
SAE Load Capacity: 930 lbs.
Dimensions: 51.5'' H x 42'' W x 59'' L
Maximum Speed: 4.2 mph
Attachments: Oil cooler, lights, oil drain kits, plus access to over 60 money-making attachments.
Special Features: Proven safety self leveling arms, universal quick attach, featured single hand palm steering for maximum push/pull, reliability, serviceability, dependability.
Warranty: 1 year machine, 2 year engine, 3 year body
Cost: $21,936


Click to view larger image
Return to Top

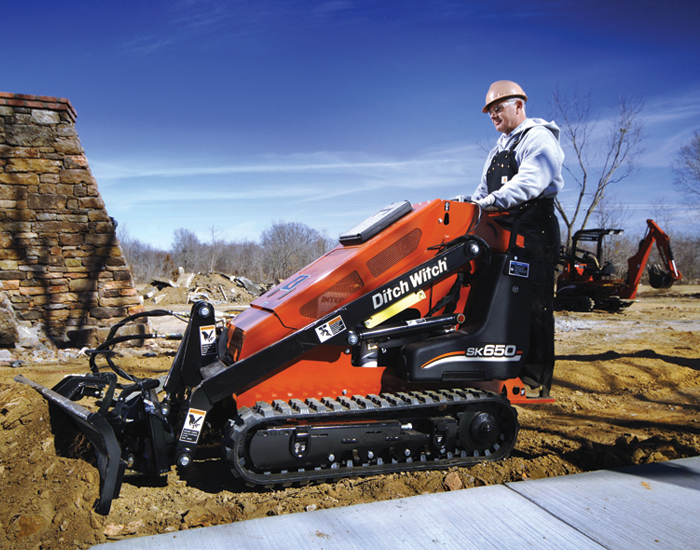

Ditch Witch
Model No.: SK650
Horsepower: 31.5 HP
SAE Load Capacity: 650 lbs.
Dimensions: 53'' H x 82'' L x 35'' W (excluding tracks) 2630 weight
Maximum Speed: 5 mph
Attachments: Over 80 different attachments for many applications
Special Features: Most power on the market, stand on platform, pilot operated controls, quick disconnect manifold, highest hinge pin height on the market, most horsepower to the attachment at 21 hp, longest track on the market, independent ground drive and auxiliary pumps.
Warranty: 1 year
Cost: $21,000 to $23,000


Click to view larger image
Return to Top

Ventrac by Venture Products, Inc.
Model No.: S70
Horsepower: 23.5 HP
SAE Load Capacity: 700-lbs.
Dimensions: 71.4'' H x 35.4'' W x 75.5'' L
Maximum Speed: 6.1 mph ???????(R)???????+???????(R)??????oe?EUR??,,????'?????< Attachments: Augers, combination buckets, grapples, landplane, pallet fork, snowblower, soil conditioner, stump grinder, tiller, tree fork, trencher and vibratory plow.
Special Features: Bob-Tach attachment mounting system, Bobcat interlock control system, front and rear lights, front auxiliary hydraulics, high back cushion seat, lift arm support, meters/gauges/warning lights, operator cab, parking brake, rear window, seat bar, seat belt, spark arresting system.
Warranty: 1 year unlimited hours
Cost: $16,995 - Actual prices will vary depending on options, accessories, freight and dealer preparation.
