In recent years a new generation of low-cost hydroseeding machines has become available. Coupled with the simple process, fast green-up, high survival rates, rapid erosion control and precise application in difficult areas like slopes, hydroseeding can provide landscape contractors with generous profit margins. This is why more landscape contractors are buying their own equipment and promoting the service, as opposed to sub-contracting the job. Take a look at the following equipment, which has been arranged by cost, so you can find just the right one for your next job.

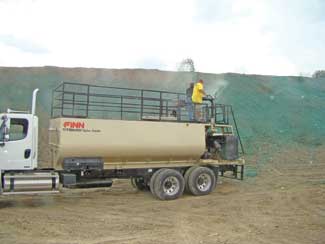

Model No.: Titan 400 Engine/HP: Cummins QSB Tier 3 compliant, 170-horsepower turbo diesel Weight: Empty: 13,180 lbs. / Working: 47,750 lbs. Tank Capacity: Liuid: 3,975 gal. / Working 3,600 gal. Size: 23’7” L x 7’6” W x 8’11.5” H Nozzles: 6 for Boom: 2 narrow fan, 2 wide fan, 2 long distance; 2 for Hose: 1 narrow fan, 1 wide fan Pump: Centrifugal 6” x 3” 500 gpm@175 psi, 3/4” solid clearance Accessories: Standard Third Agitator, Deluxe Hydraulic Hose Reel Package, Dust Control and Watering Options, Air Flush System, Truck Mounting, Optional Remote Control. Special Features: Up to 320 feet discharge distance from tower; independently controlled pump/agitator operation; three mechanical paddle agitators; liquid recirculation; hefty hydraulic system; convenient discharge boom and optional second boom; control panel with digital display Warranty: 2 years Cost: $84,990 + freight.

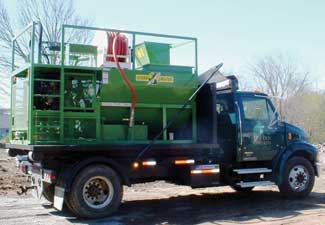

Model No.: Victor 800 Hydro-Mulcher Engine/HP: John Deere Diesel 49hp Engine Weight: Trailer – 5,470lbs (empty) Skid – 4,400lbs (empty) Tank Capacity: 958 gallons Nozzles: 4 included Pump: 3” Bowie Gear Pump Special Features: Steel Tank Construction, Integrated Shredder Box, Multiple Agitation Shafts Accessories: Electric Hose Reel with 200’ of hose, Clear Water Flush Tank Warranty: 1 Year Engine and all other Cost: $42,000 (Trailer Mounted, Electric Hose Reel and Flush Tank)

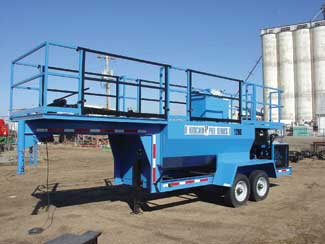

Model No.: 1200 G2C Vortex Diesel Materials: Hydroseeder Dimensions: Bumper pull Trailer 20’ 6’’ x 8’ x 10’7’’ Gooseneck trailer 24’8’‘x 8’ 10’7’’ Weight: Empty weight 9000, Loaded Weight 18,200 Carrying capacity: 1,200 gallons Special features: 98 Hp Kubota Diesel, MCM vortex pump, Shortest plumbing on the market, 200 ft spraying distance, Both variable speed pump and agitation. Warranty: 1 year Cost: $37,000 to $42,000 depending on options.
Model No.: C95 Trailer Engine/HP: 50 HP Diesel Weight: Empty 7,180 lbs. Tank Capacity: 1,050 gallons Pump: Cast iron centrifugal with hardened impeller 150 gpm at 100 psi Special features: Stainless steel tank ?EUR??,,????'??? all hydraulic drive ?EUR??,,????'??? SS mulch grinder ?EUR??,,????'??? SS bale breaker Accessories: Electric reel ?EUR??,,????'??? stainless steel flush tank Warranty: 1 year / 2 years engine Cost: $32,995

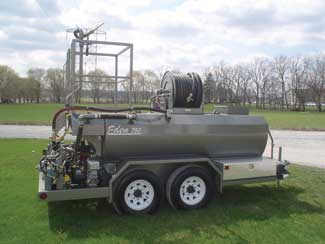

Model No.: Eden Engine/HP: 25 HP Subaru Weight: 12,000 lbs. capacity Tank Capacity: 750 gallons Dimensions: 6 feet wide by 16 feet 4 inches long Pump: 3 by 1 1/2 inch centrifugal Nozzles: 1 1/2 inch piping to Turrett with 1/2 inch nozzle and wide two spray nozzles. Special features: Fully hydraulic, direct drive, easy to use, extra storage in boxes and tool trays Accessories: Mechanical agitation, fresh water tank, toolboxes, tool trays, remote hose reel Warranty: 2 years Cost: $24,900

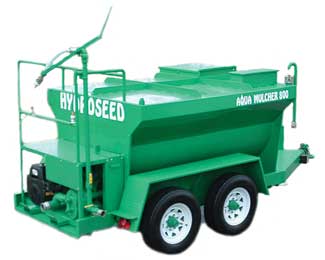

Model No.: Aqua Mulcher Hydro Series 800 Materials: 7 & 10 gauge steel tank Dimensions: 15’ long x 6 1/2’ wide Weight: 2,990 lbs empty Carrying capacity: 10,670 loaded Special features: All Hydraulic driven agitation & hydraulic driven pump-forward & reverse capable on agitator and pump. Warranty: 1 year machine, 2 year engine Cost: $ 17,750 skid mtd. $ 21,700 trailer mtd.
Model No.: HS-1000ZX Engine/HP: 27 HP Kohler Weight: 2,300 lbs Tank Capacity: 1,000 gallons Skid Size: 5’W x 10’ L x 8’ H Nozzles: Five Pump: 4’ x 4’ 740 GPM Accessories: Hose Reel Optional Special Features: Spray Platform with Turret Gun Standard Warranty: 2 year Engine, 1 Year Overall Cost: $12,895

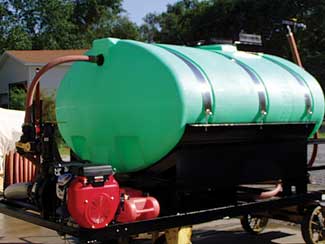

Model No.: 550 Engine/HP: Honda GX 390 13HP Weight: 1,500 lbs./6,000 lbs Tank Capacity: 550 Gallons Dimensions: 56”, 97”, 61” Pump: Double Rotary Gear – Positive Displacement Nozzles: Three Special features: Mechanical Agitation, Pumping up to 500 ft. of hose Accessories: Self Filling w/Auxiliary Tank, Storage Reel w/ Extra Hose, Trailer Warranty: Limited Warranty Cost: $10,995 (Base); $15,995 (As Shown)

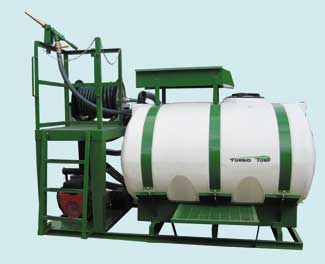

Model No.: HT1000 Gas Hydroseeder Dimensions: 66” Wide, 126” Long Weight: 1,530 lbs. Special Features: 24hp Honda Elec Start Eng, Commercial 4”x4” Cast Iron pump, continuous vortex mixing action, quick connect fittings Warranty: Tank, 3 years; Engine, 2 years, pump and workmanship 1 year. Cost: $9,995

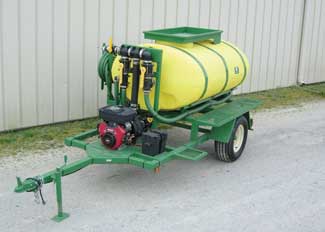

Model No.: RHS-500-VBT Engine/HP: 16 HP Vanguard Briggs and Stratton Tank Capacity: 500 gallons Pump: Banjo 333P116 Special features: Square tubular frame, bale loading platform, large bale tray, running lights, convenient manifold fittings, dual bale jets, drain/cleanout valve, range 85 feet. Warranty: 1 year on parts, pump, engine and manufactured parts 3 years on tank. Cost: $9,647

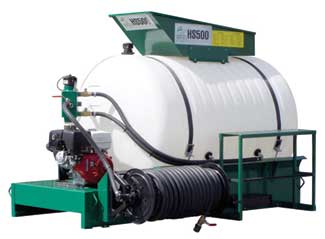

Model No.: HSR500 Engine/HP: Honda gas engine 11 HP; manual or electric start; oil alert protection Tank Capacity: Polyethylene tank, 1915 I- 500 gallons Pump: 3 inch cast iron centrifugal pump, direct drive, 300 gpm Nozzles: 2 interchangeable nozzles of 10 to 20 feet spraying distance Special features: Manual hose reel including 150 feet of 1-inch hose. Covering area of 6,500 square feet with 150 lbs. of cellulose mulch Warranty: 1 year engine, 1 year machine Cost: $6,300
1953: Year the first hydroseeder was manufactured, by the FINN Corporation. Source: FINN Corporation
33 to 50: Pounds, Hydroseeding mulch that comes in bale form typically weighs between 33 and 50 pounds. Paper mulch is usually applied at a rate between 1000 - 1200 pounds per acre.
20/80: Pelletized mulch is composed of 20 percent wood and 80 percent recycled paper. Pelletized mulch generally should be applied at 1100 to 1300 pounds per acre. Source: I-hydroseeding.com
