Whether the landscape contractor has to collect brush and leaves, haul dirt and fertilizer or clean up a construction site, hydraulic dump trailers can be quite useful. The following trailers have been chosen by professional landscapers for their quality and reliability to transport materials, debris, concrete, shingles, dirt, sand and gravel, etc.
Manufacturer: Bucks Fabricating Model No.: 10 yd. Cost: $1,865 Height inside: 42 inches Height outside: 52 inches Width overall: 96 inches Length overall: 11 feet, 9 inches Box Capacity: 10 cubic yards GVWs: 15,000 pounds Special Features: Solid Bull Nose 1 1/4 inch Plate Burnout; painted one solid color, exterior fully covered with Rust-Inhibitive DTM Allkyd Paint. Hook up available for hook-lift systems, cable (standard), heil and dino. Website: www.bucksfab.com
Manufacturer: Foster Model No.: HD-1212 Bumper Pull Cost: $6,195 Height inside: 22 inches Height outside: 42 inches Width overall: 81 inches Length overall: 9 feet Box Capacity: 5.11 cubic yards GVWs: 12,000 pounds Special Features: Load the largest skid-steers in just minutes with the easy to use slide in ramp system. Ramps are located at waist-level at the rear of the bed. Four recessed tie-downs in the bed floor offer a total of 44,000 pounds of tie-down capacity. Website: www.fostertrailers.com
Manufacturer: Redi-Haul Trailers, Inc. Model No.: RH 1026DT Cost: $6,150 Height inside: 16 inches Height outside: 19 inches Width overall: 72 inches Length overall: 10 feet Box Capacity: 3.5 cubic/yards GVWs: 13,400 pounds Special Features: Dexter axles with E-Z lube hubs, 10 gauge steel box, electric brakes, adjustable height hitch, drop leg landing jack, self-contained electric hydraulic pump with battery and remote control in a lockable box, sealed and shocked mounted lights, and heavy duty safety chains with snap hooks. Website: www.redihaul.com
Manufacturer: Supreme Corp. Model No.: 1996 Cost: Not Available Height inside: 18 inches Height outside: 28 inches Width overall: 96 inches Length overall: 11 feet 3 inches Box Capacity: 4.6 cubic yards GVWs: Depends on truck Special Features: Direct left or subframe scissor hoist (full-length, high strength steel subframe), integral rear hinge, low body mounting height, double-acting power up and power down models, electric hydraulic pump, chromed piston rod, lubricated bearing points. Website: www.supremeind.com

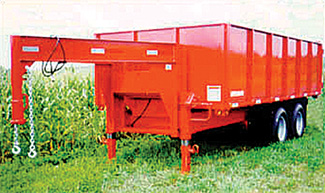

Manufacturer: Trailers for Less Model No.: DT814-14 GN Cost: $13,800 Height inside: 40 inches Height outside: 40 inches Width overall: 96 inches Length overall: 14 feet Box Capacity: 13.8 cubic yards GVWs: 14,000 pounds Special Features: The 800 series Goosenecks are designed to haul and dump large volumes. An ideal size for farmers, roofing contractors and anyone requiring a large capacity dump trailer. Quality construction, remote control and durable tubular construction. Website: www.trailersforless.com
Manufacturer: Warren Inc. Model No.: F-651 Cost: $6,948 Height inside: 40 inches Height outside: 40 inches Width overall: 96 inches Length overall: 12 to 18 feet Box Capacity: 12 to 16 cubic yards GVWs: 33,000 pounds and up Special Features: Stacked Type understructure, boxed tubular top rail, full depth corner posts and skirt and 10 gauge. ASTM kA570 A-45, hi-tensile steel body with eight-gauge hi-tensile steel floor make this an ideal unit for general purpose hauling. Website: www.dumptrucks.com
600 – Weight, in tons, of the Terex Titan 33-19, when fully loaded. The Terex Titan 33-19 is the largest dump truck in the world.
3,300 – Horsepower of the 16 cylinder engine in the Terex Titan 33-19. Source: www.alldata.com
