Happy Trails with these Trailers

LC/DBM HorsePower - November 2010
Click on the image or title below to find to more information about the Product

Trailers can serve a myriad of purposes from hauling your equipment to loading litter or green waste. You need to find the trailer that best serves your purpose. With that in mind, pay close attention to the special features of each trailer. For your convenience these trailers have been arranged in order of cost.

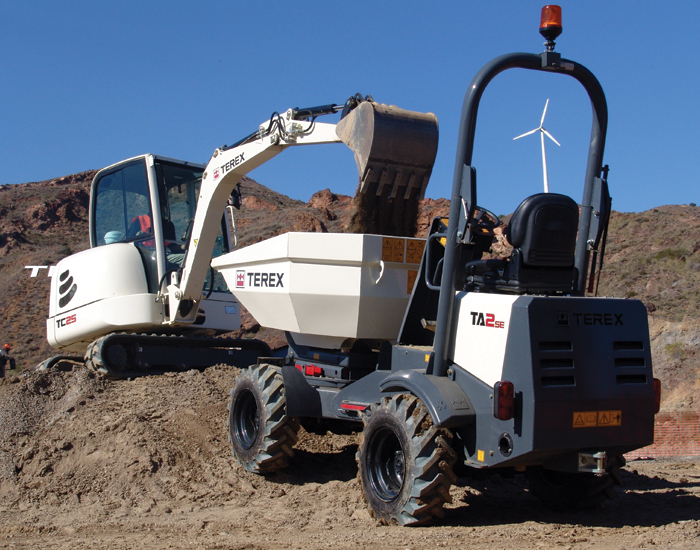

Terex
Model No.: TA2s site dumper
Materials: All Power Tip and Swivel skip belly plates are manufactured using thick steel plate to ensure maximum durability and strength.
Dimensions: 139.8'' L x 58.7'' W x 75.7'' H
Weight: 5,115 lbs.
Carrying Capacity: 4,410 lbs.
Maximum Dump Angle: Matched to the bucket capacity of a mini excavator and are designed for smaller plant users and the rental market
Special Features: Swivel-tip site dumper has maneuverability to work extremely efficiently in tight places; well suited for users who move materials and dirt around tight construction sites; turntable skip rotates through 180 degrees, ideal for working in confined spaces or dumping parallel to trenches on the move.
Warranty: 1 year
Cost: $36,430 for TA2s

Bil-Jax (Haulotte Group)
Model No.:ET 7000
Materials: Heavy-Duty welded frame, powder coated paint finish, heavy duty diamond treated plate deck
Dimensions: L 234'' x W 102''
Weight: 2,980 lbs.
Carrying Capacity: 7,000 lbs.
Maximum dump angle: Ramp grade of 6 degrees
Special Features: Deck hydraulically lowers to the ground for the easy unloading of the toughest machines. Fits a wide range of equipment including: skid steers, boom lifts, scissor lifts, mini-excavators, small rollers, floor saws and trenchers. Comes with brakes on all four wheels.
Warranty: 1 year
Cost: $12,950

Alum-Line, Inc.
Model No.: DP8016
Materials: Aluminum
Dimensions: L 192'' x W 80''
Weight: 4,000 lbs.
Carrying capacity: 10,000 lbs.
Maximum dump angle: 50 degrees
Special Features: Non-skid tongue and groove extruded aluminum flooring, eclectic double acting hoist with sub frame, steel rims with radial tiers, electric brakes on all axles, and heavy duty single speed landing leg.
Warranty: 5 years
Cost: $12,900

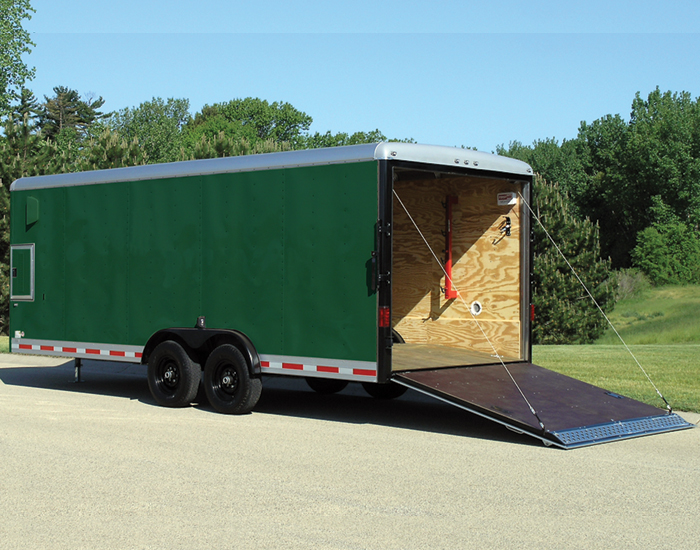

Wells Cargo
Model No.: EW2024
Materials: Enclosed cargo trailer features steel structured frame, .030 aluminum exterior, smooth galvanized steel roof, 3/4'' pressure-treated plywood floor and 3/8'' exterior grade plywood sidewall liner.
Dimensions: L 288'' x W 102''
Weight: 2,985 lbs.
Carrying Capacity: 7015
Special Features: Includes LS Package containing frame crossmembers on 16'' centers, rear ramp door with spring assist, slip resistant ramp edge protector, corner post stabilizer jacks, aluminum tread plate stone guard.
Warranty: 6 years
Cost: Starting at $9,205

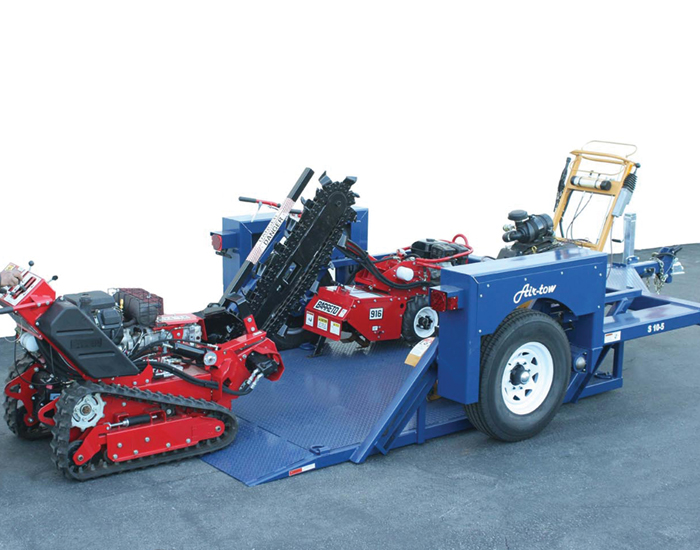

Rock Line Products
Model No.: Air-tow S10-55
Materials: 4'' x 10'' rectangular tubing frame with steel diamond deck plate
Dimensions: 6''- 3'' W x 10'' L deck
Weight: 2,390 lbs.
Capacity: 5,500 lbs.
Dump angle: Ground level loading - 3'' ramp height
Special features: Deck remains level as it raises or lowers hydraulically in 15 seconds. Fully self-contained air suspension system; auto adjust electric brakes; lockable motor and storage compartments; includes 12v deep cycle battery and complete hydraulic system; adjustable height coupler; tie down D-rings; LED lights.
Warranty: 2 years
Cost: $7,995

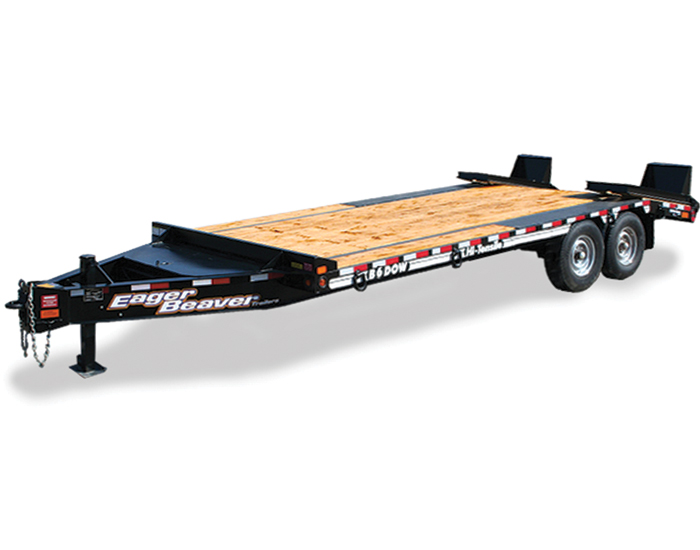

Eager Beaver Trailers
Model No.: B6DOW
Materials: Pierced Beam; Oak Deck
Dimensions: Flat Deck - 8'W x 16'6'' L
Weight: 4,200 Lbs
Capacity: 12,000 lbs.
Special Features: Pintle or 2 5/16'' ball, electric brake, Roto D-Rings, LED Lights, 34'' loaded deck height, spring assist ramps.
Warranty: 1 year, 100 percent parts and labor
Cost: $7,600

Alumne Manufacturing
Model No.: 1530XL311T
Materials: All aluminum platform 3/8'' extruded floor 3'' CM 6'' LS has extruded interlocking tubular walls, rear barn doors, side steps, LED lights, sealed wiring and semi automatic tarp system.
Dimensions: 168'' L x 96'' W X 48'' H
Weight: 1,184 lbs.
Capacity: 14 yards
Dump angle: 50 degrees
Special features: No exterior post this leaves a large signage area for advertising.
Warranty: 5 years limited
Cost: $7,550 hoist and mounting not included

Ditch Witch
Model No.: S6B
Materials: Full-width wooden or steel decks
Dimensions: L 207'' x W 156'' x H 30''
Weight: 2,100 lbs.
Carrying capacity: Tongue load, maximum 975 lbs.
Maximum dump angle: Loading ramp 18 degrees
Special features: Single-axle design with a full-width wooden or steel deck; standard tie-down points; tongue safety chains; complete lighting, including custom-made wiring harness and shock-mounted clearance lights for highway driving.
Warranty: 1 year limited
Cost: $5,600 to $6,000

Corn Pro Trailers
Model No.: UT-21 HT
Materials: #1 treated, kiln dried lumber
Dimensions: 81'' between fenders, 21' total length, 17' tilting deck
Weight: 3,680 lbs.
Carrying capacity: 10,000 lbs.
Maximum dump angle: Tilting angle is
12 degrees.
Special Features: Low Profile Tilt Trailer is made for convenience, and ease of use. The simple latching mechanism allows you to unlock both sides of the bed with one swift movement of the handle. Just tilt the bed down, drive on and the bed locks itself back. Tie your machine down and you're ready to go.
Warranty: 1 year
Cost: $4,900 to $5,800, depending on options.

AmeriDeck
Model No.: ChoreMaster
Materials: Steel
Dimensions: 93.5'' L x 53.8'' W x 14'' H; 42 cubic foot capacity
Weight: 670 lbs.
Loading Capacity: 2,000 lbs
Maximum Dump Angle: 45 degrees
Special Features: Smart solution to increase the safety, convenience and versatility of your full-size pickup truck; with push-button operation and the ability to load at ground level, the system makes it easier than ever for one person to load and unload their equipment.
Warranty: 1 year
Cost: $3,821

Bri-Mar
Model No.: DT714LPHD
Materials: Steel-8'' tube mainframe; 3'' channel cross-members; 10 gauge floor
Dimensions: L 168'' x W 84''
Weight: 4,000 lbs.
Carrying Capacity: 14,000 lbs
Max. Dump Angle: 44 degrees
Special Features: Dual Dexter EZ Lube axles; twin 3.5'' electric/hydraulic dump cylinders; valspar powder coated paint; led lights; radial tires; adjustable coupler.
Warranty: 2 Years
Cost: About $3,000

Redi Haul
Model No.: Slatted steel sides, nominal pine deck treated
Dimensions: L 10'' x W 60''
Weight: 3,930 lbs.
Carrying capacity: 2,600 lbs.
Maximum dump angle: 18'' deck height
Special features: Safety breakaway system with low charger without battery; safety chains with snap hook; sealed and shock mounted LED tail lights; sealed modular wiring system; hydraulic surge brakes on all wheels.
Warranty: 2 years structural
Cost: $2,990

Standard Hamilton Co. Inc.
Model No.: (Dump insert for existing trailers) Dump-Pro Model FS1-12 (kit or assembled)
Materials: Steel reinforced poly dump body
Dimensions: 96'' L x 61.5'' W x 26.25'' H (Basic unit less Hi-Sides option)
Weight: Basic unit 391 lbs.
Carrying capacity: 3,500 lbs, dumps 3,000 lbs. Basic unit 2 yards, with Hi-Sides option 4 to 5 yards.
Maximum dump angle: 60 degrees
Special features: Non-rusting poly dump body; can also be put onto pickup truck or flatbed; with Quick Change-Out option, it can go from Pick-Up to Dump Truck in Minutes.
Warranty: 2 years entire unit, except winch which is 1 year.
Cost: Base unit including trailering option is $2,544 in non-dealer areas (includes free shipping to lower 48 states). Dealer pricing may vary.

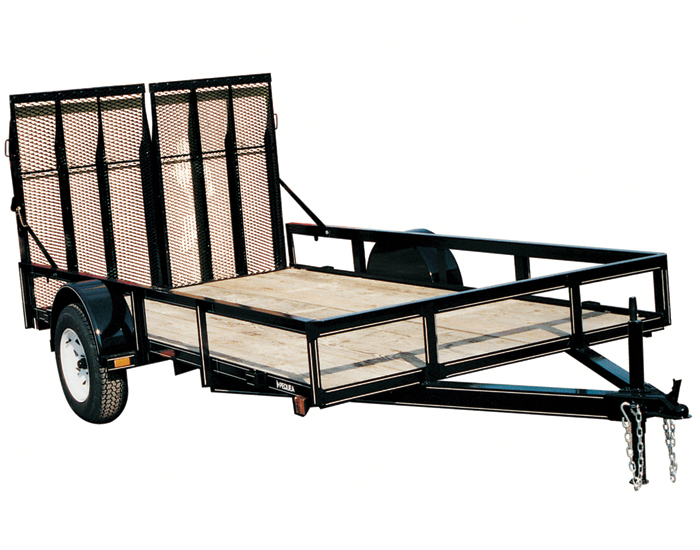

Skibo Co.
Model No.: Pequea 8012 S
Materials: 2 x 10 pressure treated ACQ #2 lumber
Dimensions: L 192'' x W 100'' x H 33''
Weight: 1,200 lbs.
Carrying capacity: 2,999 lbs.
Special features: 8000-series utility trailers feature 80 inches between the fenders to make hauling larger mowers a snap. They also have a rigid angle-iron frame rail practical for securing equipment with straps and chains.
Warranty: 1 year
Cost: Starting at $1,525

Lifetime Products
Model No.: Fold Up Utility Trailer
Materials: Heavy-duty 22 gauge galvanized steel weather-resistant frame
Dimensions: Bed L 96'' x W 62'' x H 11'', folds to a manageable 29''
Weight: 419 lbs.
Carrying capacity: 1,500 lbs.
Maximum dump angle: Ramp grade of 6 degrees
Special Features: Removable and rear gates that double as ramps, allowing owners to easily load and unload larger, heavier items; a full light kit includes brake, turn signals, tail lamps and wire harness for safety.
Warranty: 2 years limited
Cost: $1,399

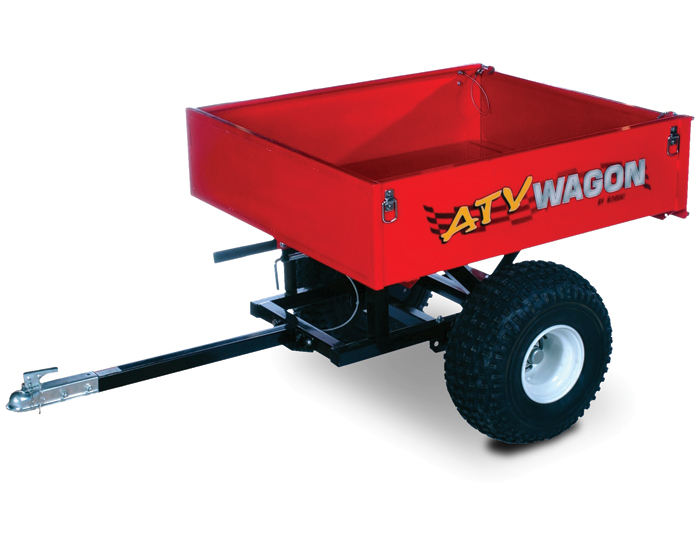

Forestry Suppliers
Model No.: 800UT ATV Utility Wagon
Materials: Independent suspension, high ground clearance, 25'' tires, and a powder-coated steel body.
Dimensions: 85'' L x 47'' W x 37'' H
Weight: 323 lbs.
Carrying Capacity: 14.7 cubic feet
Maximum Dump Angle: Dumping cargo is a cinch with the balanced lift bed and double hinged tailgate.
Special Features: Each trailer has a brake/tail light for extra safety, single axle, durable and dependable enough for most any tough job!
Warranty: 1 year
Cost: $899
