Model No.: Low Profile Pump Station Weight: Ranges from 1,050 to 1,300 lbs. Horsepower: 3 to 10 HP Power Consumption: Varies depending on power which can be 230VAC, 1 ph or 208, 230, 480 VAC, 3 ph Max Flow Rate: 10,000 lbs. Special Features: Flat ground-level loading; Deck remains level though it travel; Full automatic self-contained air suspension. Warranty: 1 year Cost: $10,995

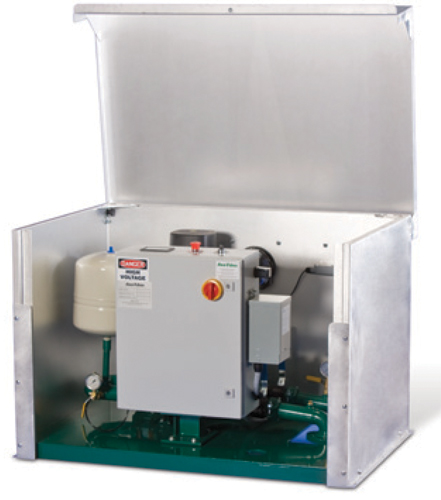

Model No.: RDP-1 series mini-box pump/filter/water treatment/control unit Weight: 350 lbs. Horsepower: ????? to 3 HP Power Consumption: 115/230 volt 1 phase and 120/208 volt, 3 phase Max Flow Rate: 160 GPM @ 40 TDH Special Features: Modular one piece molded box design. Factory assembled, piped, wired and tested. Field ready to accept pipe and electrical connections to bulkhead and conduit fittings. Complete with breaker panel and time clock control. Warranty: 1 year Cost: $5,500 to $6,500

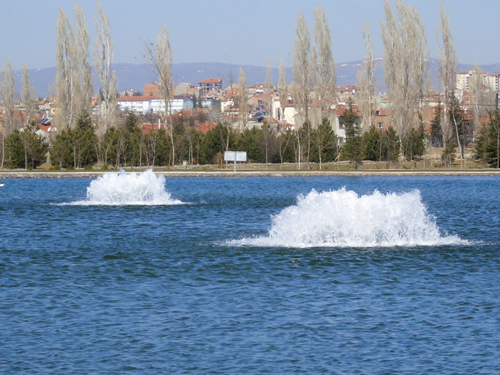

Model No.: Industrial Aerators – High Volume Weight: 205 lbs. average for complete system Horsepower: 1 to 5 HP Power Consumption: Amperage varies 6.8 to 14.4 at 230 volts. Max Flow Rate: 3.3 lbs. oxygen per HP hour, pumping over 900 gpm/hr Special Features: High OTR and pumping rates of the High Volume allow it to quickly and effectively improve water quality and maintain cooler water temperatures in severe aquatic environments. Warranty: 3 + 5 year warranty (3 years moving parts, 5 years non-moving parts) Cost: $4,063 for complete system
Model No.: Model 4D Aquacube Weight: 10 lbs. Power Consumption: 0.8 amp @120V 4 Max Flow Rate: 400 GPM Special Features: Aeration, circulation, biofiltration and degassing one maintenance free unit. Warranty: 5 years Cost: $3,259

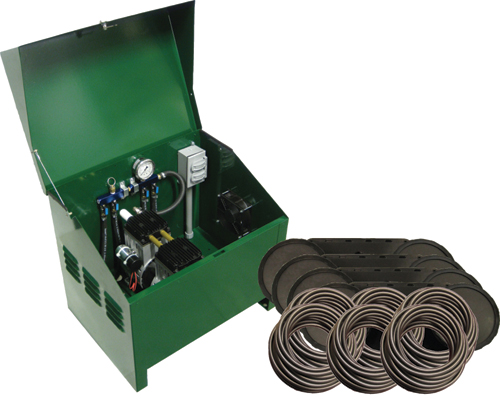

Model No.: PA86D Weight: 235 lbs. Power Consumption: 5.7 amps at 115 volt Max Flow Rate: 7.5 cfm Special Features: Sentinel Deluxe aeration system is powered by a Stratus ERP, 3/4 horsepower dual rocking piston air compressor. Complete aeration system for ponds up to 4 acres includes compressor installed in lockable steel cabinet, 600' of Quick Sink tubing and four dual-membrane diffusers. Warranty: 2 years on compressor, 5 years on cabinet, tubing and diffusers Cost: $2,942.89

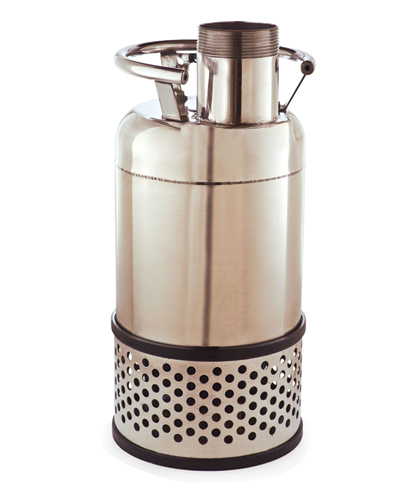

Model No.: TidalWave L-Series Pumps L305 Weight: 60 lbs. Horsepower: 0.5 HP Power Consumption: 6.4 Amps Max Flow Rate: 11,400 gph at 2.5’ tdh Special Features: Low-head/high-volume, axial flow TidalWave L-Series pumps are manufactured from cast-iron and stainless steel with a precision motor for thermal overload protection. Engineered for high volume applications with a double silicone carbide mechanical seal, dual drive bearings and a 32’ power cord. Warranty: 2 years Cost: $1,425.71

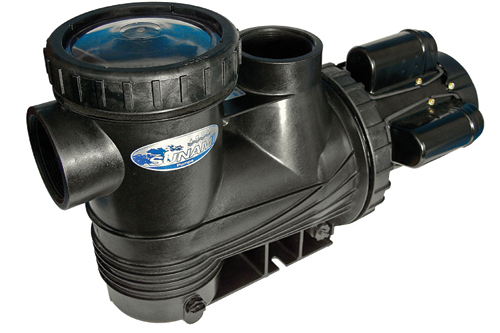

Model No.: Sunami Pumps A10183 Weight: 45 lbs. Horsepower: 1/3 HP Power Consumption: 4.36 Amps Max Flow Rate: 100 GPM at 10 ft of head Special Features: Sunami high flow external pumps are quiet and energy efficient. RingLok design allows tool free access to basket and internals. Motors can be switched to upgrade to ¾, 3, 4, 5 HP using the existing body. Warranty: Against failure due to defects in materials and/or workmanship for 1 year from the purchase date. Cost: $1,300

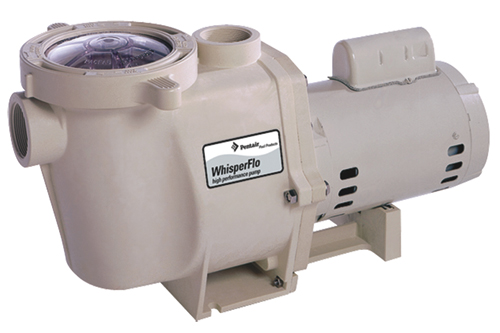

Model No.: Pentair® WhisperFlo® Pumps WFE12 Weight: Ranges from 1,050 to 1,300 lbs. Horsepower: 3 HP Power Consumption: 230 volts, 15/13.6 full load amps Max Flow Rate: 1.15 SF Special Features: Extremely high water flow in a quiet, energy-efficient package. Durable build makes them effective in residential and commercial applications. Include oversized strainer basket and volute. Warranty: 1 year Cost: $829.92
Model No.: Tsurumi 3PN Pump 50PN-2.25S Weight: 22.5 lbs. Horsepower: 1/3 HP Power Consumption: 479 watts Max Flow Rate: 3,630 gallons per hour Max Height of Water: 30 feet Special Features: These energy efficient pumps are designed for continuous duty applications and known for their reliable operation. They are recommended for high head and perform better with 5 feet of vertical height or more. Warranty: 2 years Cost: $489.99

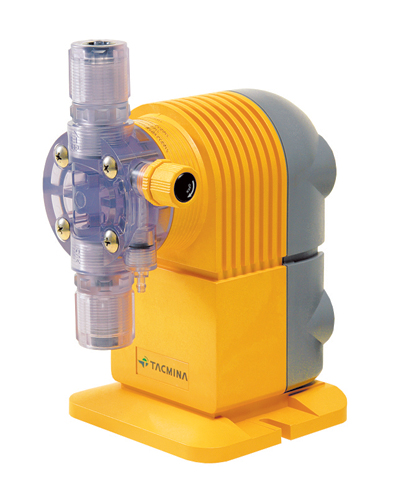

Model No.: PZ/PZI Series Weight: 7 to 8 lbs. Power Consumption: Average power of 15 to 18 watts from 94 to 264 VAC Max Flow Rate: 0.01 gph to 1.6 gph Special Features: High stroking speed ensures more uniform distribution of chemical at low feed rates; pump delivery remains constant at any voltage from 94 to 264 VAC single phase and is not affected by voltage fluctuations; water and UV resistant; state-of-the-art control and programmable features; superior degassing head. Warranty: 1 year from the date of purchase Cost: $350 to $1,285

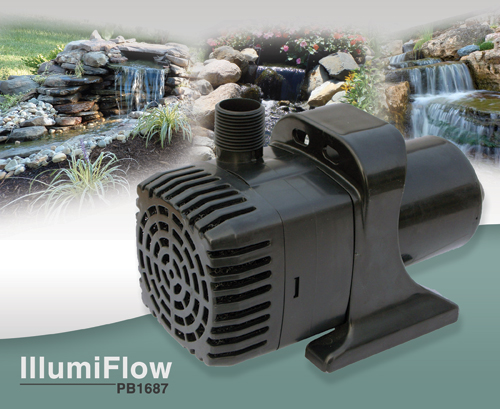

Model No.: IllumiFlow 1750 Item# PB1687 Weight: 4 lbs. Horsepower: 3 HP Power Consumption: 110 - 195 watts Max Flow Rate: 1,750 gph Special Features: IllumiFlow Pumps are a hybrid direct drive/magnetic drive pump. They offer the flow rates of direct drive pumps with the low energy costs of magnetic drive pumps. Warranty: 2 years Cost: $125 wholesale

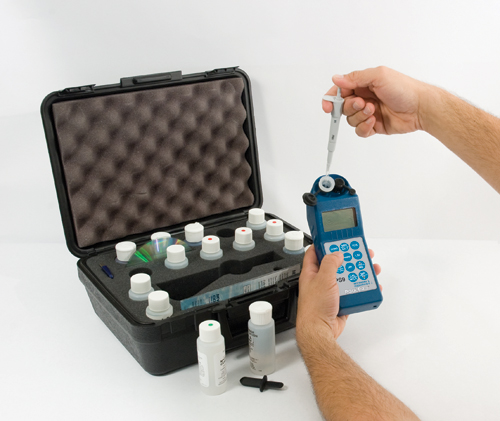

Model No.: POOLPRO PS9TK Weight: 12.4 oz. Power Consumption: Runs on one 9V battery that lasts over 100 hours (5,000 readings) Max Flow Rate: 10,000 lbs. Warranty: Instrument is warrantied for 2 years, excepting the replaceable pH sensor, which has a 6 mo. avg. estimated life, depending on use. Cost: $1,754.09
Model No.: EPDM PondGard Weight: 1.42kg/m² (0.29 lb/ft²) Special Features: Fish friendly, extremely durable, highly flexible, easy to install, contours to irregular substrates, superior resistance to UV and ozone, excellent low temperature properties. Warranty: 20 years limited manufacturer Cost: Pricing information available from local distributors
