Excavators: Compact and Mighty

LC/DBM HorsePower - June 2011
Click on the image or title below to find to more information about the Product

Don't let their small size fool you; compact excavators (also known as mini excavators) are powerful digging machines that are anything but mini. With advanced hydraulic systems, compact excavators can often outperform larger tractor loader backhoes, which are limited to only 180 degrees of workgroup movement. This equipment uses less fuel and can be hauled with lighter, more fuel-efficient trucks, keeping your hourly costs down. Take a careful look at the special features and choose the one that best fits your needs and budget. For your convenience the compact excavators have been arranged by cost.

Yanmar
Model No.:ViO80
Horsepower: 54.6 HP
SAE Bucket Force: 15,863 lbf
SAE Stick Force: 8,363 lbf
Dimensions: 21'2'' L x 7'5'' W x 8'10'' H
Maximum Speed: 2.8 mph
Operating Weight: 18,136 lbs.
Optional Equipment: Steel tracks, wider bucket, hydraulic thumb
Special Features: True zero tail, standard hydraulic quick coupler, auto deceleration, ECO mode, 40 percent increased wide cabin
Warranty: 3 years or 3,000 hours
Cost: $118,720

Takeuchi
Model No.:TB180FR
Horsepower: 60.8 HP
SAE Bucket Force: 16,335 lbf
SAE Arm Force: 8,020 lbf
Dimensions: 20'3'' L x 7'7'' W x 9'1'' H
Maximum Speed: 3.4 mph
Operating Weight: 18,370 lbs. with cab
Optional Equipment: Buckets, hydraulic thumb, mechanical coupler, bolt-on rubber pads for steel track.
Special Features: Patented Side to Side offset boom design coupled with minimal tail swing allows machine to perform in the most confined environments; proportional slide switch controls of auxiliary hydraulics provide smooth precise control.
Warranty: 2 years or 2,000 hours
Cost: $106,000

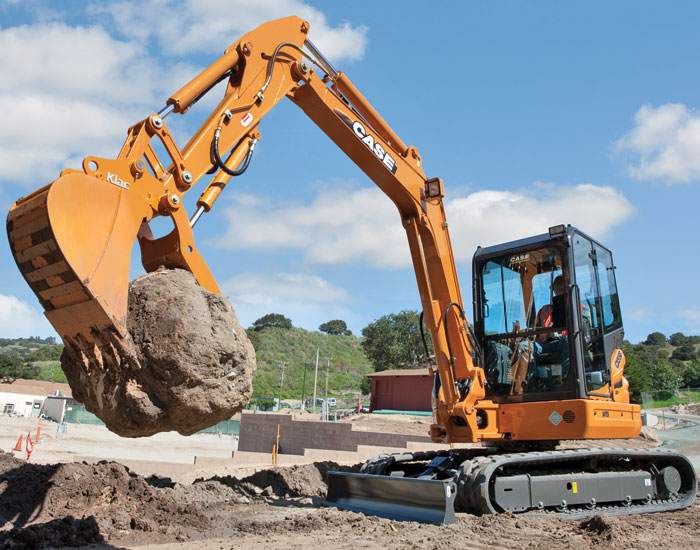

Case Construction Equipment
Model No.: CX55B
Horsepower: 39.3 HP
Bucket Force: 11,240 lbf
Stick Force: 5,598 lbf
Dimensions: 17'10'' L x 6'5'' W x 8'4'' H
Maximum speed: 2.9 mph
Operating Weight: 12,295 lbs.
Optional Equipment: Available attachments include buckets, hammers and augers. An optional four-way dozer blade is also available for increased backfill and grading ability. Case offers both rubber and steel tracks for the CX55B to match the ground conditions.
Special Features: The full-size cab design is 10-percent larger and 7 inches wider than other Case B Series compact excavator cabs. Large front and rear windows improve operator visibility. A new slide-up front window improves air flow and helps the operator communicate more effectively with coworkers near the machine.
Warranty: 1 Year
Cost: $68,500

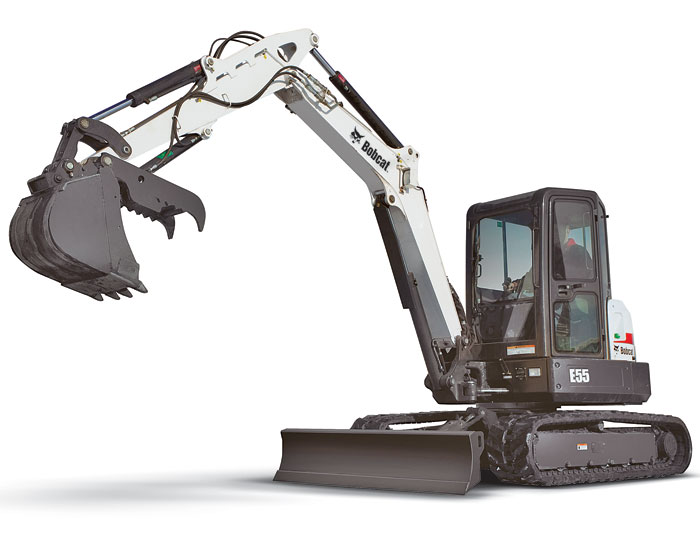

Bobcat Company
Model No.:E55
Horsepower: 48.8 HP
SAE Bucket Force: 9,442 lbf
SAE Stick Force: 5,868 lbf
Dimensions: 17'9'' L x 6' 5.8'' W x 8' 3.7'' H
Maximum Speed: 3.1 mph
Operating Weight: 12,478 lbs.
Optional Equipment: Pad-ready steel tracks, rubber street pads, a hydraulic angle blade, second auxiliary hydraulics, hydraulic clamp and Hydraulic X-Change attachment mounting systems.
Special Features: Fingertip control for boom swing and auxiliary hydraulics functions, TOPS/ROPS certified cab, including full climate control (HVAC), deluxe high-back cloth suspension seat with retractable seat belt, auto idle and a keyless start system
Warranty: 1 year, unlimited hours
Cost: Between $65,000 and $67,000

Volvo Construction Equipment
Model No.: EC35C compact excavator
Horsepower: 34.9 HP
SAE bucket force: 6,956 lbf
SAE stick force: 5,033 lbf
Dimensions: 15'1'' L x 5'4'' W x 8'1.5'' H
Max speed: 3 mph
Operating weight: 7,573 lbs.
Optional equipment: Pin-on attachment bracket, hydraulic angle blade, long dipper, thumb, single-acting or double-acting hydraulic circuits, flat face hydraulic couplings, steel tracks.
Special features: Powerful, load-sensing hydraulics provides on-demand flow. Two-speed travel with automatic downshift that adjusts to travel load. Side-mounted engine with easy ground-level access to filters and fills.
Warranty: 1 year/unlimited hours
Cost: $56,111

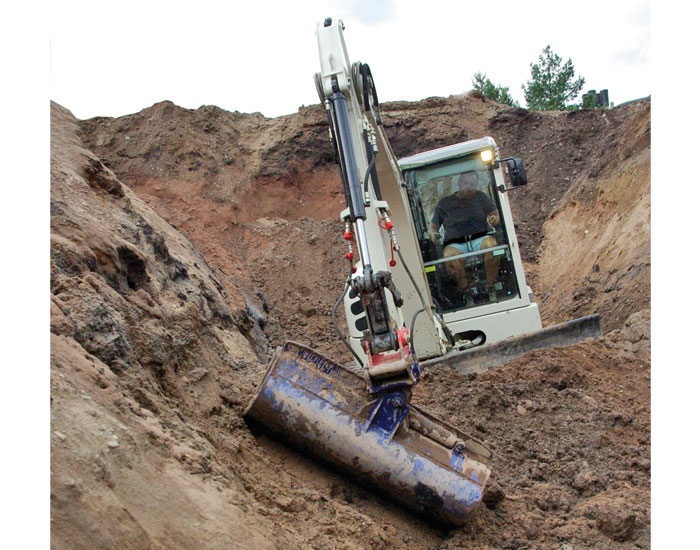

Terex
Model No.: TC50
Horsepower: 39.4 HP Yanmar 4TNV88 engine
SAE Bucket Force: 7,020 lbf
SAE Stick Force: 6,075 lbf
Dimensions: 11'9'' L x 6'11'' W x 12'9'' H
Maximum Speed: Forward 1.7 mph - reverse 3.1 mph
Operating Weight: 11,067 lbs.
Optional Equipment: Load-sensing and load-independent flow division hydraulics system that are matched to the machine's size; operators can change from ISO to SAE controls to suit personal preference.
Special Features: Offering a stable, zero-tail swing platform, the new TC50 excels in constricted work environments. It is designed to turn within its tracks, guaranteeing that the rear of the machine does not swing into nearby structures.
Warranty: 1 year, unlimited hours
Cost: With cab is $55,130

John Deere
Model No.:35D Excavator
Horsepower: 28.6 HP @ 2,400 rpm
SAE Bucket Force: 6,182 lbf Life Capacity: 3.315 lbs.
Dimensions: 15'3'' L x 5'8.5'' W x 8'1'' H
Maximum Speed: 2.8 mph
Operating Weight: 7,760 lbs.
Optional Equipment: Optional angle blade; standard coupler accommodates a wide variety of available attachments such as rakes, breakers and augers.
Special Features: Reduced- and zero-tail swing designs make these compact excavators even more productive, for extra maneuverability in close quarters; spacious operator stations and refined cabs provide comfort and visibility; quiet running EPA IT4/EU Stage IIIB direct-injected diesels deliver generous torque and impressive fuel efficiency.
Warranty: Extended Coverage provides additional protection that shields you from risk and stress.
Cost: $51,000

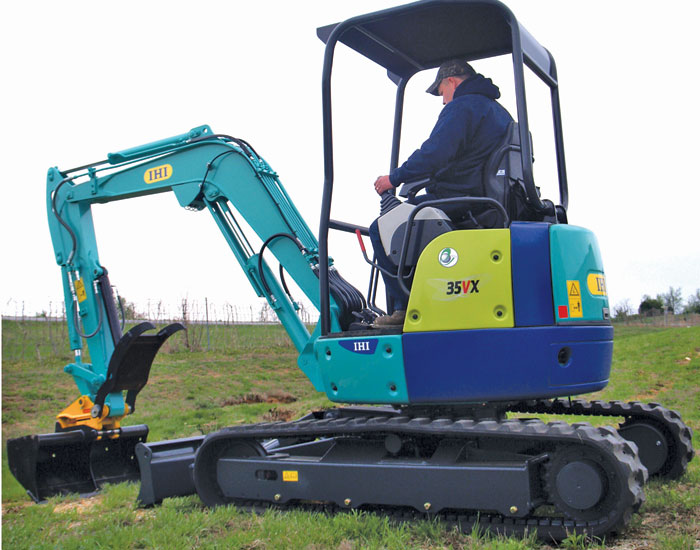

IHI
Model No.: 35VX
Horsepower: 27.6 HP
SAE Bucket Force: 7,688 lbf
Dimensions: 8'1'' H x 5' to 5'11'' W (expandable tracks) X 15' L
Maximum Speed: 3 mph
Operating Weight: 7,507 lbs.
Optional Equipment: Steel tracks/Extend-a-hoe-(3'3'')/cabin/hydraulic thumb/hydraulic quick couplers.
Special Features: Equipped standard with expandable tracks from 5' to 5'11''; EPA Tier 4 compliant and conforms to the EC low noise regulations; zero tail swing with offset boom; equipped with hydraulic pilot controls for smooth operation.
Warranty: 1,000 hours or 1 year
Cost: $50,865

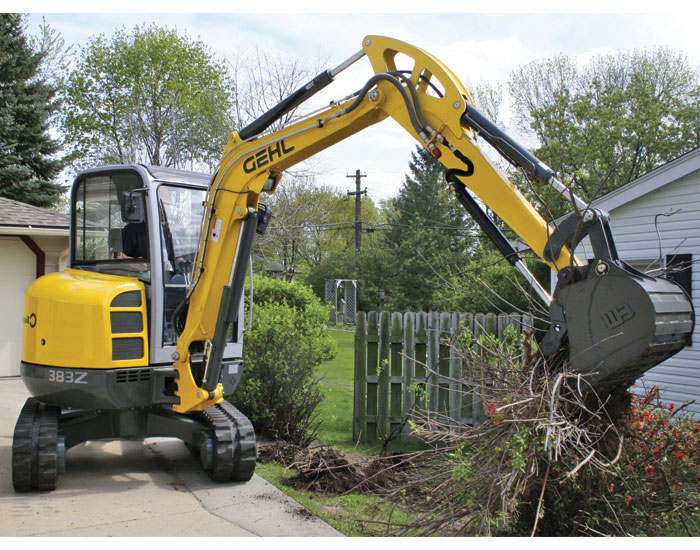

Gehl
Model No.: 383Z
Horsepower: 28.8 HP
SAE Bucket Force: 5,778 lbf
SAE Stick Force: 4,923 lbf
Dimensions: 8'2'' H x 5'8'' W x 15'9'' L
Maximum Speed: 2.84 mph
Operating Weight: 8,002 lbs. with cab, 7,826 lbs. with canopy
Optional Equipment: Counterweight, rear view mirror kit, cab with heater, cab mounted work lights, 3'' seat belt, Travel alarm kit, proportional auxiliary hydraulic joystick controls.
Special Features: Zero-tail-swing maneuverability, which allows the machine's superstructure to rotate entirely within the tracks; can operate close to walls and obstructions without risk of contact; innovative design that enhances both operator space and serviceability.
Warranty: 1 year machine (2 years on the engine)
Cost: $49,108

Mustang
Model No.: 2803ZT
Horsepower: 20.4 HP
SAE Bucket Force: 5,057 lbf
SAE Stick Force: 4,923 lbf
Dimensions: 7'11'' H x 5'2'' W x 13'11.5'' L Maximum Speed: 2.85 mph
Operating Weight: 5,886 lbs. with cab, 5,681lbs. with canopy
Optional Equipment: Counterweight, rear view mirror kit, cab with heater, cab mounted work lights, 3'' seat belt.
Special Features: Unmatched stability, a large, comfortable operator's station and easy access to maintenance points; eliminating rear overhang by enhancing stability with a longer undercarriage. The slim machine offers a sturdy track width and optional counterweight, creating an even more stable machine.
Warranty: 1 year machine (2 years on the engine)
Cost: $43,564

Ventrac
Model No.: HJ Excavator 480
Horsepower: Designed to fit both the 3000 and 4000 series Ventrac Tractor
Dimensions: 34'' L x 53.5'' W x 13'' H
Operating Weight: 180 lbs.
Maximum Speed: Can dig either in forward or reverse
Optional Equipment: Bucket attachments can haul, dig and excavate various materials as well as cut sod.
Special Features: Dual cutting edges include one serrated and one smooth to tackle tough jobs or delicate work. The serrated cutting edge makes short work of digging in hard soils and is great for serious excavating.
Warranty: V-Plus 2 years Commercial
Cost: $1,450

Innovative Equipment
Model No.: TMX Towable Mini-Excavators T10025 gas model
Horsepower: 20 HP Kohler command engine
SAE Bucket Force: 4,050 lbf
SAE Stick Force: Dipper 2,550 lbf
Dimensions: 151'' L x 74.5'' W x 79'' H
Maximum Speed: 6 mph
Operating Weight: 2,941 lbs.
Optional Equipment: Featuring a quick-on and quick-off hitch system, the TMX units can be hooked behind a standard 1/2-ton pick-up, van or light-duty tow vehicle; 4-way blade system for efficient backfilling and grading after excavation work is complete.
Special Features: Zero-turn rotation enables convenient access to tight locations and allows work on well-established lawns or greens by virtually eliminating the potential for turf damage; drive tires are designed for mud terrain, ensuring performance and traction in demanding applications.
Warranty: 1 year
Cost: $29,900
