Compactors - Compaction for the Best Action

LC/DBM HorsePower - January 2010
Click on the image or title below to find to more information about the Product

When working with hardscapes you will often need to use a compaction machine to smooth out and level the surface. You have several options so check out the features that best fit your needs. For your convenience these compaction machines have been arranged by cost.

Stone Construction Equipment
Model No.:RP1130 Reversible Plate
Engine: Hatz 1D505
Horsepower: 9.5 hp
Centrifugal Force: 11,240 lbs.
Frequency: 3,900 vpm
Working Width: 35''
Special Features: Unique patented-three shaft eccentric system, which delivers optimum force, a lower center of gravity and larger amplitude for better compaction, with maximum climbability and optimal maneuverability. This makes it ideal for compaction of sand, gravel, aggregates and mixed soils.
Warranty: 6 months
Cost: $15,027 list price

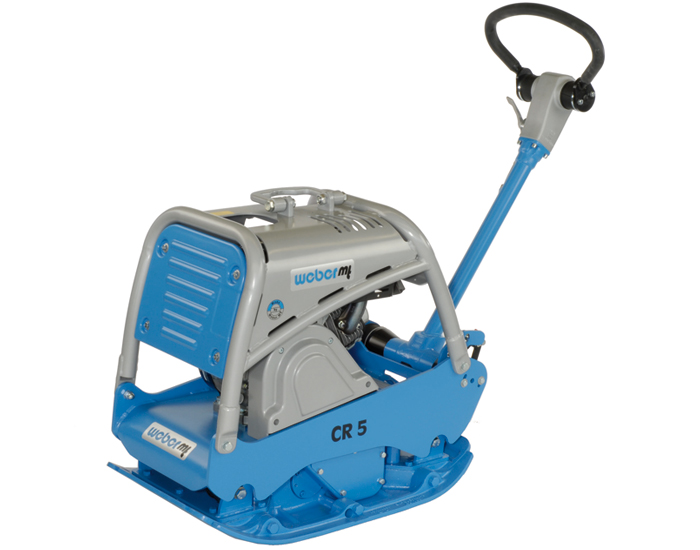

Weber MT, Inc.
Model No.: CR 5
Engine: Honda GX270 or Hatz 1B30 Diesel
Horsepower: 9.0 HP
Centrifugal Force: 10,150 lbs.
Frequency: 4,350 rpm
Working Width: 22'' to 28''
Special Features: Comfortable hydraulic control to reverse machine direction; can be equipped with a gasoline or diesel engine; available optional extras include compaction meter COMPATROL, polyurethene pad and wheel kit.
Warranty: 2 years
Cost: $9,464 (gasoline)

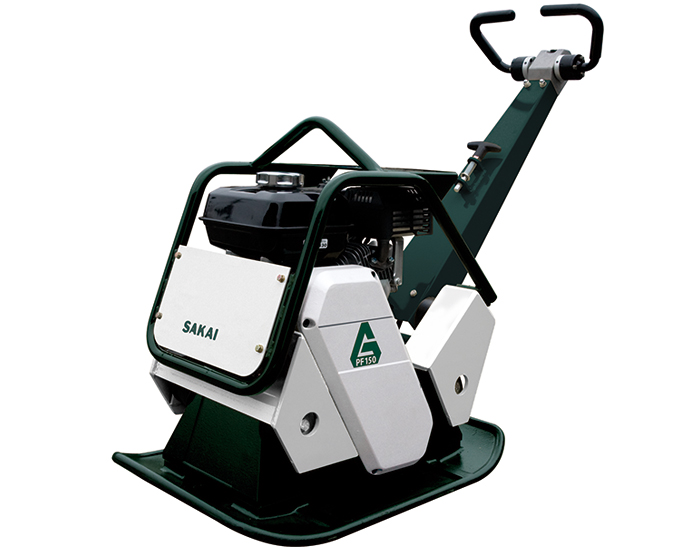

Sakai America
Model No.: PF150
Engine: Honda GX1200U
Horsepower: 5 HP
Centrifugal Force: 6,965 lbs.
Frequency: 5,580 vpm
Working Width: 19.5'' x 27.5''
Special Features: Chassis - Super heavy-duty center hitch design provides superior chassis stability, ground contact and operator control. Braking Systems - Sakai is the only roller manufacturer to offer three separate braking systems, including an automotive footbrake as a standard safety feature on all its machines.
Warranty: 1 year for the unit and 2 years for the engine
Cost: $5,850

Wacker Neuson
Model No.: BPU 2540
Engine: Wacker Neuson WM 170
Horsepower: 5.6 HP
Centrifugal Force: 5,625 lbs.
Frequency: 5,400 rpm
Working width: 15.8''
Special features: Durable integrated wheel kit allows for easy transportation in shop and around job site. This machine is ideal for compaction of interlocking paving stones and other landscape applications.
Warranty: 2 years
Cost: List price $5,345

Multiquip Inc.
Model No.:MVH120VGH
Engine: Honda GX160 gasoline engine
Horsepower: 4.8 HP
Centrifugal Force: 5,060 lbs.
Frequency: 6,000 rpm
Working Width: 15.8''
Special Features: This plate is extremely maneuverable making it the logical choice for work in tight, confined areas; top cover keeps debris out of the engine; self-cleaning plate; Anti-Vibration handle System.
Warranty: 1 year parts and labor
Cost: $5,085

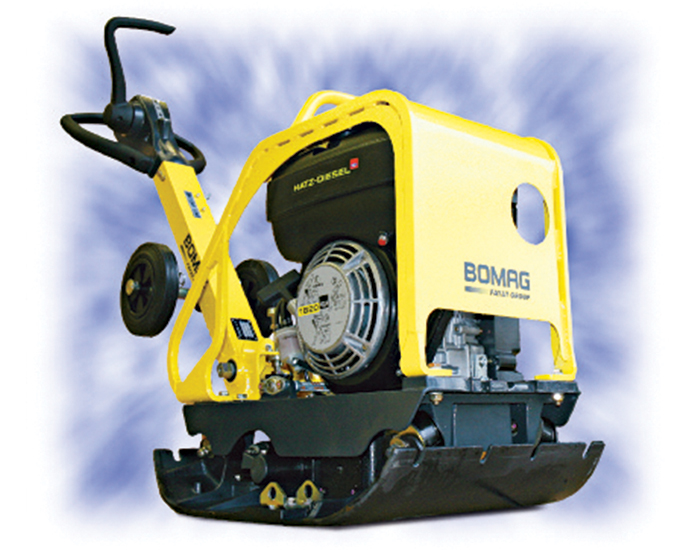

Bomag Americas
Model No.: BPR25/40
Engine: Honda GX 160
Horsepower: 4.8 HP
Centrifugal Force: 5,620 lbs.
Frequency: 3,600 vpm
Working Width: 15.7''
Special Features: Hydraulic travel lever adjustment; vibration dampened steering rod; height adjustable steering rod; steering rod lockable in transport and working position; vibration and throttle regulation on the steering rod.
Warranty: 1 year standard, 2 years on engine
Cost: $5,000 to $6,000, depending on engine

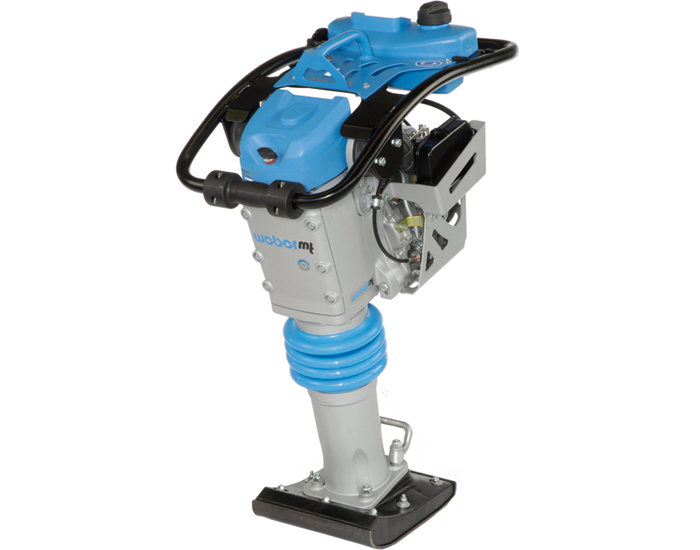

Weber MT, Inc.
Model No.: SRV 660
Engine: Subaru EH-12
Horsepower: 4.1 HP
Centrifugal Force: 3,600 lbs.
Weight: 165 lbs.
Working Width: 11''
Special Features: Three-stage air filtration system consisting of a cyclone pre-cleaner, a newly developed main filter and, for additional security, the air filter of the engine manufacturer.
Warranty: 2 years
Cost: $3,736

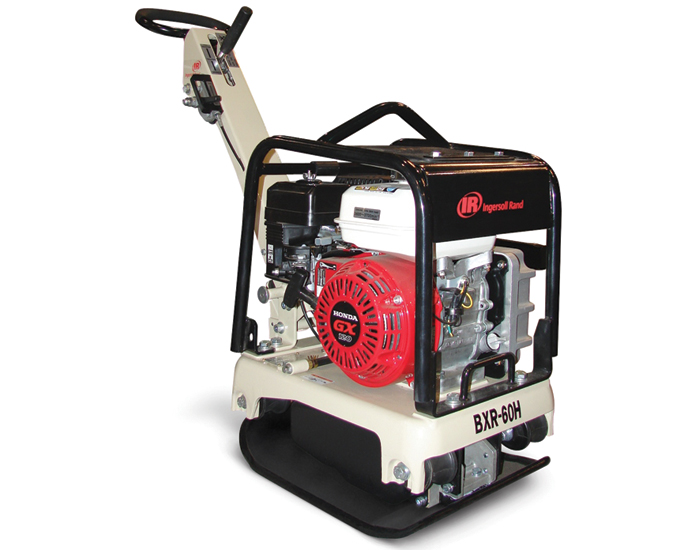

Doosan Infracore
Model No.: BXR-60H Reversible Vibratory Plate Compactor
Engine: Honda gasoline
Horsepower: 3.5 HP
Centrifugal Force: 3,417 lbs.
Frequency: 5,600 vpm
Working Width: 13.8''
Special Features: Among the industry's smallest reversible plate compactors, it packs a lot of punch (compaction force) in a small package. It provides the flexibility of a reversible plate (maneuverability - exit and leaving on the same plane with its reversing feature) at the price range of a forward plate compactor.
Warranty: Standard 1 year
Cost: Retail range of $2,300 to $2,500
