Loaders

LC/DBM HorsePower - April 2011
Click on the image or title below to find to more information about the Product

When moving earth it's best to find a loader that fits your needs. You may work on small residential jobs or larger industrial and commercial projects. Play close attention to the special features. For your convenience these loaders have been arranged by cost.

Volvo
Model No.: G-Series L150G wheel loader
Horsepower: Volvo D13 Tier 4i engines
SAE Load Capacity: 5.3 cubic yards
Dimensions: 278.3'' L x 116.5'' W x 140.6'' H
Maximum Speed: 38 mph
Attachments: CareTrack telematics system; rear opening hood for easy service access as well as good visibility for the operator. Centralized filters are accessible on the right side of the engine under the hood and include the engine oil check and fill.
Special Features: rehandling buckets, specifically designed for easier pile penetration to increase fuel efficiency and performance. OptiShift transmission increases fuel efficiency and lowers fuel consumption for the G-Series wheel loaders.
Warranty: 12 months/1,500 hours, whichever first occurs
Cost: MSRP $404,770

Case
Model No.: 570M XT Series 3 loader/tool carrier
Horsepower: 77 HP Case 4-390 engine
Bucket Breakout Force: 9,265 lbf
Dimensions: Wheelbase 4WD 84.5'', height to top of canopy 8'-7''
Maximum Speed: 25 mph
Accessories: Range of attachments, optional Ride Control™ increases load retention over rough terrain while also making the operator more comfortable.
Special Features: Single-lever loader control designed for easy effort and ergonomic comfort. Push-button differential lock and transmission de-clutch are located close at hand. An automatic self-leveling feature minimizes bucket spills as the operator raises the loader.
Warranty: 1 year
Cost: $73,000

Mustang
Model No.: 3300V Skid Steer Loader
Horsepower: 84 HP
SAE Load Capacity: 3,300 lbs.
Dimensions: 153.6'' L x 72'' W x 82.1'' H when equipped with bucket.
Maximum Speed: 12.2 mph with 2-speed option
Attachments: Universal type attachment mounting system is compatible with most allied attachments.
Special Features: Vertical-lift design provides more than 131'' of lift height and extra reach for easy material handling and truck loading.
Warranty: 12 months from date of service, unlimited hours. Extended protection up to 5 years.
Cost: Suggest list $52,300

Gehl
Model No.:V330 Skid Loader
Horsepower: 84-HP Yanmar turbo-diesel engine
SAE Load Capacity: 3,300 lbs.
Dimensions: 153.6'' L x 72'' W x 82.1'' H
Maximum Speed: 8.1 mph
Attachments: Fully adjustable joystick controls and an optional air-ride seat deliver outstanding operator comfort; optional, pressurized sealed cab enclosure provides a cleaner and quieter operating environment.
Special Features: Ergonomic cab design; side-folding restraint bar and armrests feature multiple adjustments to enhance operator comfort and safety; Hydraglide™ Ride Control System; ROPS/FOPS assembly.
Warranty: 12 months from date of service, unlimited hours. Extended protection to up to 5 years is available.
Cost: $52,250

Caterpillar
Model No.: Vertical-Lift 259B Series 3
Horsepower: 71 HP Cat C3.4T DIT engine
SAE Load Capacity: 2,950 lbs.
Dimensions: 70.5'' L x 41'' W x 46'' H
Maximum Speed: 5.9 mph
Attachments: Undercarriage uses triple-flange cast-iron rollers equipped with Caterpillar's exclusive Duo-Cone seals. Large, heavy-duty idlers, front and rear, provide a generous radius that minimizes track bending.
Special Features: Independent, fully suspended steel undercarriage, aggressive steel embedded rubber tracks, powerful hydraulics and refined operator's station, easy truck loading and precise material placement.
Warranty: 1 year
Cost: $50,840

Takeuchi
Model No.: TL230 Series 2
Horsepower: Gross 71 HP, net 68 HP
SAE Load Capacity: 1,885 lbs.
Dimensions: 137'' L x 67.5'' W x 83.9'' H – equipped with a 67.5'' bucket
Maximum Speed: 6.8 mph
Attachments: In addition to the available high capacity severe duty buckets, heavy duty pallet forks and the 6-way dozer blade, Takeuchi offers performance and versatility.
Special Features: Tremendous loader lift arm force, bucket breakout force and traction force, each combine to provide blend of power and performance.
Warranty: 2 years or 2,000 hours full machine warranty
Cost: $45,295 Canopy, dirt bucket with teeth; $51,145 Cab, dirt bucket with teeth

Bobcat
Model No.: S750
Horsepower: 85 HP
SAE Load Capacity: 3,200 lbs.
Dimensions: 141.6'' L x 81.3'' H x 74'' W
Maximum speed: 7.1 mph
Attachments: Compatible with dozens of Bobcat attachment options
Special features: Unique cab-forward design, M-Series features and benefits, increased hydraulic performance
Warranty: 12 months (unlimited hours)
Cost: $42,121 base

Terex Construction Americas
Model No.: TSR60 Skid Steer Loader
Horsepower: 60 HP
SAE Load Capacity: 1,500 lbs.
Dimensions: 136.6'' L x 66'' W x 77'' H
Maximum Speed: 12 mph
Attachments: Auger drive and bits, backhoe, rotary broom, general purpose bucket, light-material bucket, multi-purpose bucket, rotary brush cutter, dozer blade, eliminator rake, grapple bucket.
Special Features: 10.5'' ground clearance, 29-degree rear angle of departure, 8,453 lbs. of tractive effort, load-sensing hydraulics, loader arms designed to accommodate over-the-tire tracks, 25-gal fuel tank, ergonomic operators' environment
Warranty: Standard 12-months
Cost: $28,830

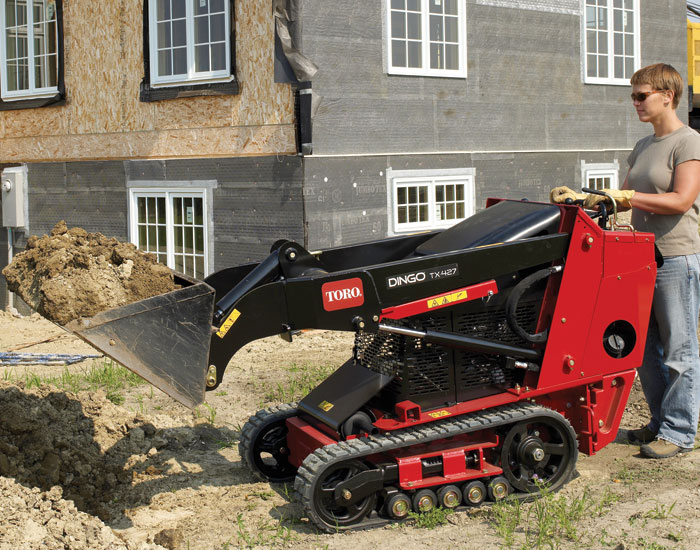

The Toro Company
Model No.: TX 427 Wide Track
Horsepower: 27-HP Kohler® engine
SAE Load Capacity: 535 lbs.
Dimensions: Length 70.5'' L x 41'' W x 46'' H
Maximum Speed: 4.5 mph
Attachments: Auger drives and augers, backhoe, buckets, cement bowl, hydraulic breaker, forks, multi purpose tool, utility blade, leveler, tiller, soil cultivator, power box rake, grapple rake, TX platform, snowthrower, stump grinder. trencher, trench filler, bore drive head, vibratory plow.
Special Features: 4-pump hydraulic system, Kevlar reinforced tracks.
Warranty: 1 year product, 3 years engine
Cost: $21,318

Massey Ferguson®
Model No.: MF1526 compact tractor
Horsepower: 25 HP Tier 4 interim-emission-compliant Iseki three-cylinder liquid-cooled diesel engine
SAE Load Capacity: 823 lbs.
Dimensions: 111'' L x 49.2'' W x 95.5'' H
Maximum Speed: 10.64 mph forward and 7.8 mph reverse.
Attachments: Mid-mount PTO is a convenient option. Attaching and operating implements such as a tiller, rotary cutter or finish mower is simple work with the category I three-point hitch.
Special Features: Three-range hydrostatic transmission and improved ergonomics. handy three-range hydrostatic transmission with separate forward and reverse right-side foot pedals.
Warranty: 2 Years or 1,500 hours
Cost: $14,534 list price

Ventrac
Model No.: KH500 VERSA-Loader
Engine: Designed for the Ventrac 4000 series tractor
Dimensions: 75'' L x 48.5'' W x 67'' H
SAE Load Capacity: 500 lbs.
Attachments: Pallet forks, post hole digger, tree auger.
Special Features: Standard 5 cubic foot bucket capable of lifting over 6 feet high. Versatile design allows you to disconnect and get attached to other optional attachments in minutes without tools or heavy lifting.
Warranty: V-Plus residential 3 years, commercial 2 years
Cost: $6,095
