Loaders - Get a Load of These Loaders






Click on the image or title below to find to more information about the Product

A loader can be one of your most valuable pieces of equipment, because of its versatility and durability. From installation to construction to maintenance, these machines can handle your many tasks. Pay attention to the special features and attachments, which will help guide you in your purchasing decision. For your convenience these loaders have been arranged by cost.

virtuallawn.gif virtuallawn.gif virtuallawn.gif
Allmand Bros. Inc. Caterpillar Gehl Company
virtuallawn.gif virtuallawn.gif virtuallawn.gif
Case Construction Mustang Volvo Construction Equipment
virtuallawn.gif virtuallawn.gif virtuallawn.gif
Terex Bobcat Ramrod Equipment
virtuallawn.gif virtuallawn.gif virtuallawn.gif
JCB Ditch Witch Ventrac



Click to view larger image
Return to Top

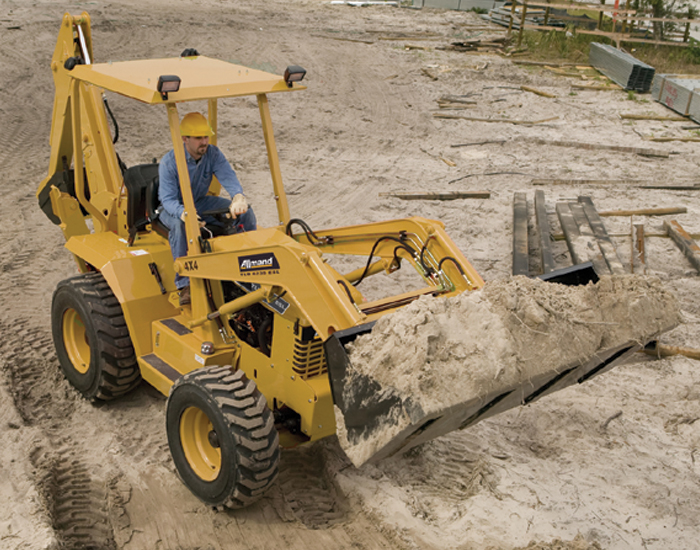

Allmand Bros. Inc.
Model No.: TLB-6235
Horsepower: 33 HP
SAE Load Capacity: 2,100 lbs.
Dimensions: 218?EUR??,,????'?? L x 67?EUR??,,????'?? W (equipped with ESL backhoe) and 93'' H to top of ROPS
Maximum speed: 7 mph
Attachments: Buckets: 12'', 16", 18'', 24'' or 36''. Swing: 180 degrees with cushioned swing cylinders; reversible grouser pads.
Special Features: Full time 4x4 drive system, combination loader/backhoe, loader design provides higher reach and improved dump angle, off-highway planetary axles, load-sensing power steering
Warranty: 2 year limited warranty
Cost: $50,665


Click to view larger image
Return to Top

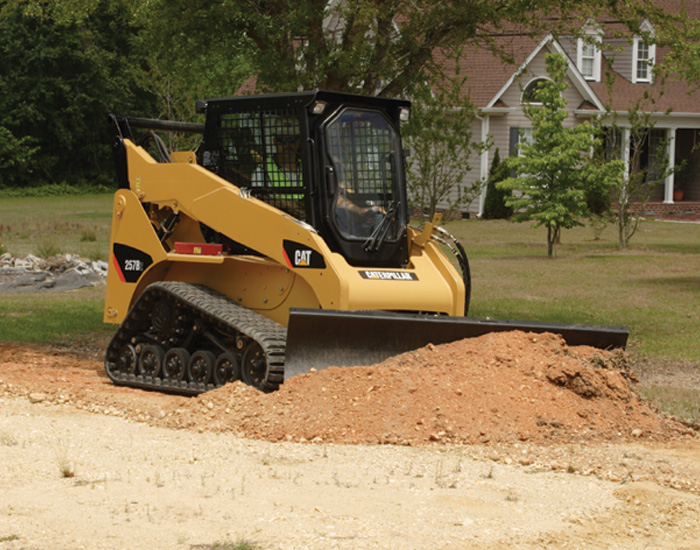

Caterpillar
Model No.: 257B2
Horsepower: 61 HP
SAE Load Capacity: 1,870 lbs.
Dimensions: 137'' L x 66'' W x 80'' H - equipped with 66 inch dirt bucket
Maximum Speed: 7 mph
Attachments: Augers, trenchers, landscape rakes, power box rakes, landscape tillers, backhoe attachment, dozer blades, brooms, brushcutters, stump grinders, forks and a wide selection of buckets.
Special Features: Independently suspended undercarriage provides great floatation, for a longer working season, and low ground pressure (4.5 psi) provide minimal ground disturbance even in sensitive applications.
Warranty: 1 year
Cost: $47,690


Click to view larger image
Return to Top

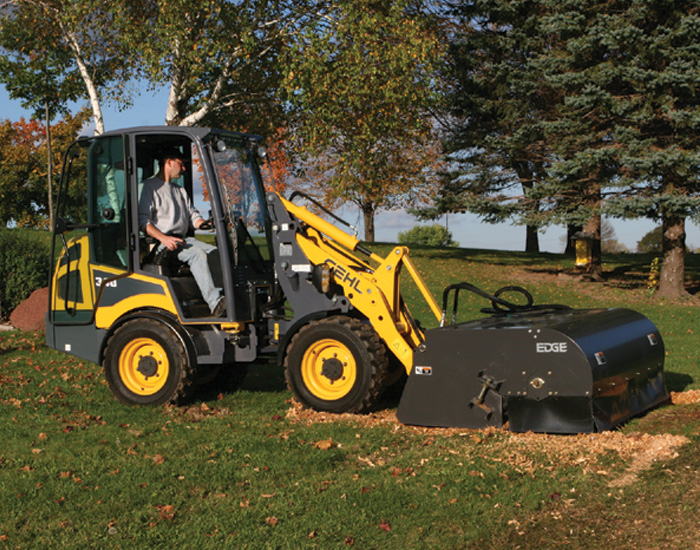

Gehl Company
Model No.: 340 Articulated Loader
Horsepower: 35 hp @ 2800 rpm
SAE Load Capacity: 1,760 lbs.
Dimensions: 131.9'' L x 50.4'' W x 83.2'' H
Maximum Speed: 11.5 mph (18.5 km/h)
Attachments: Universal-type attachment bracket fits most skid loader attachments, putting tools already owned to good use.
Special Features: Articulated steering allows turns up to 45 degrees and minimizes damage to turf and wear on tires.
Warranty: 1 year base unit, 2 years engine
Cost: $35,900


Click to view larger image
Return to Top

Case Construction
Model No.: 445 Series
Horsepower: 77 HP
SAE Load Capacity: 2,500 lbs.
Dimensions: 131.5'' L x 71.1'' W x 95.3'' H
Maximum Speed: 11.4 mph
Attachments: Variety of options and accessories for landscape contractors.
Special Features: 400 Series 3 skid steer loaders feature powerful engines, ergonomically designed cabs, superior serviceability.
Warranty: 1 year machine, 2 years/2,000 hours on power train
Cost: $35,000 to $40,000


Click to view larger image
Return to Top

Mustang
Model No.: 2056 Skid-Steer Loader
Horsepower: 62 HP
SAE Load Capacity: 1,900 lbs.
Dimensions: 126.3'' L (with bucket) x 59.7'' W x 78'' H
Maximum Speed: 12.4 mph with 2-speed option
Attachments: Easy to use Multi-Tach??????oe (universal-style) attachment mounting system is compatible with most allied attachments. Power Fast-Attach??????oe option allows users to quickly install and remove attachments without leaving the seat.
Special Features: High-reaching radial-lift design; solid workhorse; fully loaded; high-flow auxiliary hydraulics; smooth operator; excellent visibility; controlled environment; get in control; information at-a-glance.
Warranty: 1 year, unlimited hours.
Cost: $34,800


Click to view larger image
Return to Top

Volvo Construction Equipment
Model No.: Z-10
Engine: Kohler 29 HP electronic fuel injection
Deck: 62'' wide, 3 blades with
air accelerators
Speed: 0 to 16 mph forward; 0 to 5 mph reverse; infinitely variable
Tires: 26'' x 12 rear; 13'' x 9 front; all tires no-flat flotation tires
Accessories: Air suspension seat; lighting system; hitch; lawn/leaf sweeper.
Special Features: Independent suspension; all controls on handlebars; only four grease points.
Warranty: 2 years commercial
Cost: $16,995


Click to view larger image
Return to Top

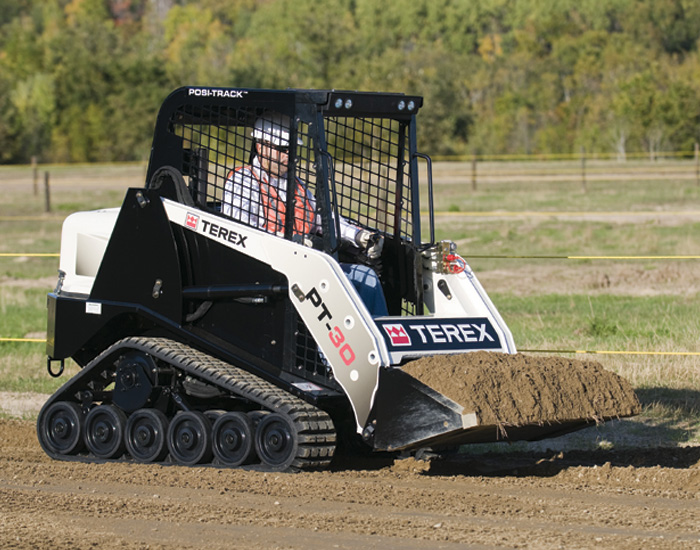

Terex
Model No.: PT-30 compact track loader
Horsepower: 33.7 HP
SAE Load Capacity: 1,900 lbs.
Dimensions: 114'' L x 48'' W x 101'' H
Maximum Speed: 6 mph
Attachments: Auger, backhoe, brush cutter, leveler, pallet forks, box rake, snow blade and blower, tiller, trencher, buckets -- general purpose, light material and multi-purpose.
Special Features: 4-foot profile to work in limited access areas; low 3.0 psi ground pressure to work on soft or sensitive surfaces; attachments are performance-matched to the machine to ensure proper fit, balance and operation.
Warranty: 1 year machine, 2 years/2,000 hours tracks
Cost: $31,000 to $33,000


Click to view larger image
Return to Top

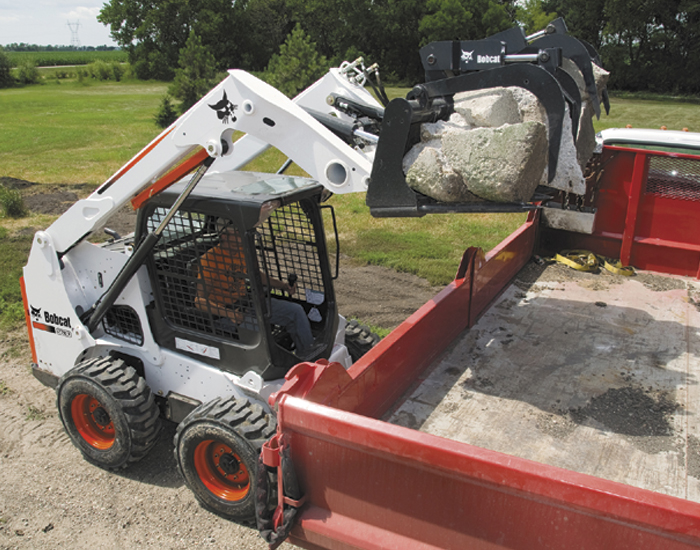

Bobcat
Model No.: S630
Horsepower: 74 HP
SAE Load Capacity: 2,180 lbs.
Dimensions: 125'' L x 74'' W x 81'' H
Maximum speed: 12.3 mph
Attachments: Silt fence installer, Brushcat rotary cutter, concrete mixer, vibratory plow, rotating grapple, box blade, angle broom, stump grinder, auger, soil conditioner.
Special Features: Pressurized interior; cab-forward design; bigger entry/exit; larger cab size; all-around visibility; improved seat adjustments; more seat suspension.
Warranty: 1 year
Cost: $31,000 to $33,000


Click to view larger image
Return to Top

Ramrod Equipment
Model No.: 1150LKG
Horsepower: 27 HP
SAE Load Capacity: 2,300 lbs.
Dimensions: 80.4'' L with bucket x 43.5'' W x 50.2'' H
Attachments: 60 available including buckets, augers, trenchers, backhoes, tillers, snow blowers, etc.
Special Features: Automatic self-leveling loader arms.
Warranty: 3 years on frame, 2 years engine, 1 year on all other parts
Cost: $26,000


Click to view larger image
Return to Top

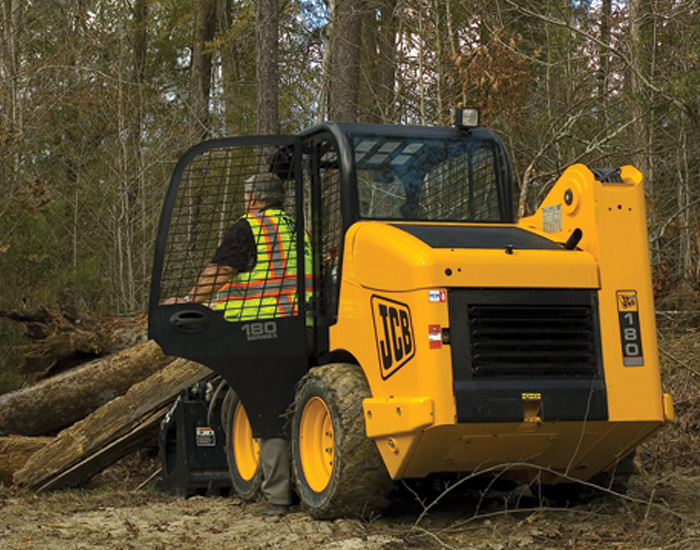

JCB
Model No.: 180
Horsepower: 60 HP
SAE Load Capacity: 1,808 lbs.
Dimensions: 128.5'' L x 68'' W x 76.5'' H
Maximum Speed: 6.8 mph
Attachments: Landscape bucket, slot cutter, hammer, dozer blade, trencher, stump grinder, planer, landscape rake, industrial grapple, pick up broom, pallet fork and frame.
Special Features: Mono boom design makes machine much safer to operate for two main reasons: 1) the operator can enter and exit the machine through a side door, rather than climbing over cumbersome attachments; and 2) the mono boom also allows for unparalleled vision-boasting a 325 degree line of sight.
Warranty: 2 years warranty as standard, 3 years structural and lifetime guarantee on the boom
Cost: $24,500 to $27,000


Click to view larger image
Return to Top

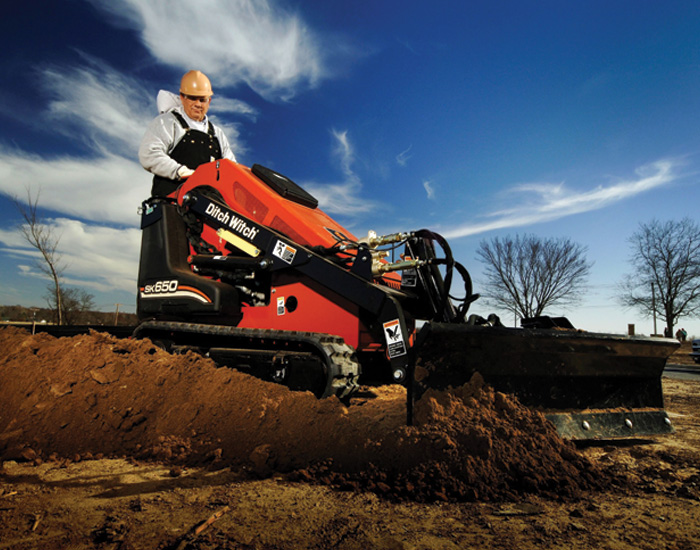

Ditch Witch
Model No.: SK650
Horsepower: 31 HP
SAE Load Capacity: 1,860 lbs.
Dimensions: 82'' L x 42'' W x 53'' H
Maximum Speed: 4 mph, forward and reverse
Attachments: Quick-disconnect attachment fittings enable attachments to be changed with the hydraulic system under pressure, which speeds productivity.
Special Features: Fuel and hydraulic tanks are mounted on the outside of the machine?EUR??,,????'???s frame. Because the fuel tank is exterior-mounted, we could make it larger, and we did. With an eight-gallon (30 L) capacity, most jobs can be completed without stopping to fuel.
Warranty: 1 year
Cost: $24,000


Click to view larger image
Return to Top

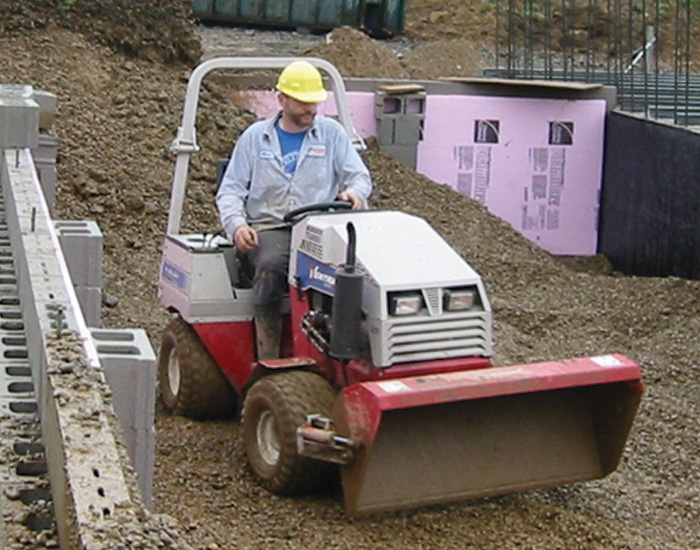

Ventrac
Model No.: HE480 48'' Slip Scoop
Horsepower: Designed to be used with the 4000series Ventrac tractors
SAE Load Capacity: 6 feet 3 inches
Dimensions: 34'' L x 53'' W x 16'' H
Special Features: Ventrac Slip Scoops are hydraulically controlled from the driver's seat, allowing for smooth, effortless operation.
Warranty: 3 years
Cost: $22,750 for tractor and attachment
