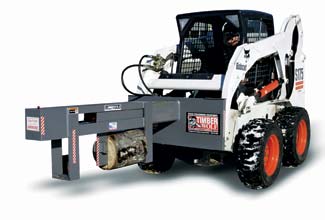

Rugged, heavy steel box framing on the Timberwolf TW-S3 log splitter allows you to handle and process timber easily and conveniently.

Skid steer loaders are one of the more versatile pieces of equipment you can use on your landscape. No matter what the season or what the needs, you can strap on attachments to maintain the grounds or build something new. Take a look at these attachments that range from log splitters and jib booms, to snow plows and sod cutters.

Rakes

By the time the first skid steer rolled out some 47 years ago York Modern had been turning 3-point hitch tractors into versatile landscaping tools for nearly 36 years. Almost from the beginning skid steer owners began ?EUR??,,????'??adapting?EUR??,,????'?? 3-point hitch rakes to their machines. Since those early days the Model SSF, a landscape rake was specifically designed for use on skid steers. SSF rake section can angled to discharge material right or left. If the operator prefers the rake section can reversed to either push or pull material. Rakes sections are available in six, seven or eight foot widths. Five different working positions, not to mention float can handle almost any landscaping or maintenance job. When equipped with optional caster wheels, grader blade and end boots the Model SSF will make any skid steer a more versatile and valuable tool!

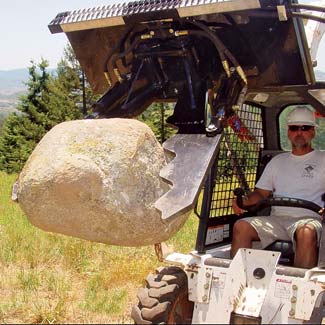

Star Hill Jawz Grabbing Tool can pick up and set rocks; uproot unwanted plants/small trees; pull out fence posts/metal stakes; debris removal; demolition; log/branch suspension for cutting; debris box loading.

Angle Broom

The skid steer angle broom mounts directly to your skid steer using the same universal mounting plate as the SSF. SSAB is hydraulically driven, and requires 10-15 GPM at 1800-2250 PSI. The broom maybe angled to a maximum of 30 degrees left or right. The manual angling feature may be converted to hydraulic operation by replacing the control arm with a standard 10?EUR??,,????'?? stroke cylinder. Optional equipment includes storage stands to protect the broom during maintenance and storage, deflectors to protect the operator from dust and debris and a sprinkler system for added dust control. It?EUR??,,????'???s available in 6, 7 and 8-foot broom widths, using 32-inch diameter convoluted brush sections. Brooms may be equipped with either all polypropylene, crimped wire or a 50/50 combination brush sections.

Pick Up Broom

Model SSPU broom is hydraulically driven and requires a hydraulic system of 10-15 GPM and 1800-2250 PSI. Unless otherwise specified the SSPU is equipped with a universal mounting plate as standard equipment. The bucket is constructed of 3/16?EUR??,,????'?? steel and has half-inch wear bars on the bottom for longer bucket life. The heaped bucket capacity is approximately 16 cubic feet on the 5-foot model and 19 cubic feet on the 6-foot model. The caster wheels make this broom much easier to operate. The SSPU is available in 5?EUR??,,????'??? and 6?EUR??,,????'??? widths, equipped with 24-inch diameter brush sections. Brooms may be equipped with either all polypropylene, crimped wire or a 50/50 combination brush sections. The optional gutter brush allows the operator to get into those hard to reach spots. If dust control is an issue the optional sprinkler system is the answer.

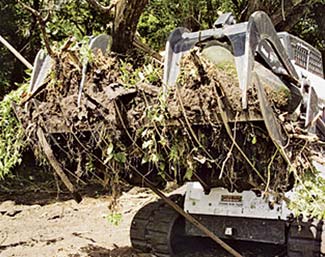

Common uses for the root grapple attachment includes grub brush; pick up logs, gather rocks; perform debris removal; load debris boxes; carry culverts.

Log Splitter

The TW-S3 was designed and built from the ground up by log splitter manufacturer, Timberwolf Manufacturing Corporation. With 18 to 20 tons of splitting force- and a fast 8 to12 second cycle time, the S3 powers through logs up to 30?EUR??,,????'?? long at about half the length and weight of competitive units.

The S3?EUR??,,????'???s simple and rugged construction offers years of trouble free operation. With its rugged, heavy steel box framing, top-of-the-line hydraulics and Timberwolf?EUR??,,????'???s trademark powder painted finish, this skid steer attachment is easy to use, requires little or no maintenance and increases your productivity in a big way. Stay on the job and in your seat the next time you need to split wood! This attachment will allow you to handle and process timber easily and conveniently.

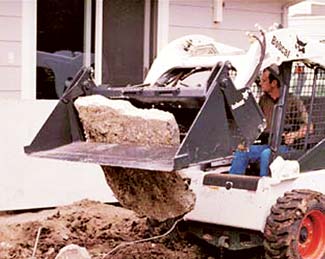

Combination bucket (often known as the 4 in 1 bucket) can handle several tasks with the bucket open: pick up chunks of concrete; pick up rocks; grab logs and branches; shave dirt mounds. With the bucket closed: move soil, manure, and sand; move rocks.

Combination Bucket

This is a useful attachment because it serves both grabbing and hauling functions. With the bucket in the open position one can grab rocks, chunks of concrete, logs and debris. With the bucket in the closed position the attachment becomes a common bucket useful for dirt/manure work and rock transport. Attach a pair of forks to the bucket and you have a pallet attachment. This attachment does not allow for precise placement of rocks and requires hook and chain for plant and post removal. The actual weight of a combination bucket may be a concern on smaller tractors.

Grapple

With multiple types of grapples available, they all operate in a similar manner. In some, the tines on the bottom are fixed and in others (such as the one shown), both the upper and lower elements of the attachment move in synchrony. This attachment is useful for general grubbing of brush, rocks and small tree removal. It is commonly used for rock transport and for grabbing long objects such as trees and culverts. Drawbacks to this attachment include lack of precision when performing plant/tree removal, the inability to place objects in a precise manner and possible soil disturbance.

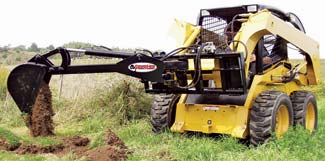

For getting up close to dig parallel to walls, all SwingHoe mounting frames are conveniently equipped with two swing-pivot points, one in the center and one on the right-hand side. Heavy-duty construction includes grease fittings on all pivot points and brass bushings on key wear points. Skid-steer loader owners can add versatility with this attachment.

Grabbing Tool

Star Hill Jawz features T-1 steel jaw fingers opening and closing in a common plane. It affords its operator the chance to lift up rocks, trees and a wide range of suitable objects and then place them down with the utmost precision. The tool uproots and removes individual plants and smaller trees (up to 6?EUR??,,????'?? in diameter) with the least amount of disruption to the soil. Posts and stakes lift out of the ground easily with this recently patented grabbing tool. It?EUR??,,????'???s also useful for picking up and suspending branches and logs for cutting into smaller pieces. This tool is not appropriate for large diameter tree work nor should it be confused with the root grapple when clearing large acreages.

Mini-Backhoe

SwingHoe?EUR??,,????<

Simple, efficient construction gives you the best of both worlds, saving time and money. Hydraulics are directly connected to the skid steer controls, for low maintenance and versatility. You?EUR??,,????'???ve got the power to dig deep, reach high and reposition easily, all from the comfortable operator?EUR??,,????'???s position. SwingHoe digs down six feet, making it ideal for most landscaping or light construction. Buckets are available in 12, 15 and 18-inch widths to suit a variety of digging needs.

Backfillers

Created for use with the mini skid or skid loaders, the McCullough cover-up series 1500, 1600, 2000 and 3000 will make your backfilling task easier and faster. These attachments can backfill 60 foot of trenching in 60 seconds without damaging the turf. The units are designed to float over the terrain to minimize gouging and dumping. The 1500 and 1600 can work with nearly all of the mini skids that are the market today by adapting the mounting plate to the parallel bars. One of features of the unit is its ability to move vertically 7 inches to compensate for uneven terrain. The series 2000 and 3000 are made for the bigger backfilling jobs and are used with the skid steer loaders.
Utility Blade

The versatility of the Worksite Pro?EUR??,,????<

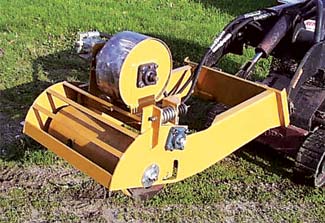

Remove old sod in preparation for new with the HUMMERTM Sod Cutter. This attachment uses a powerful 10HP hydraulic motor to operate a vibratory 18 inch wide cutting blade.

Hydraulic Breaker

True Hydraulic Hammer Operating Cycle ?EUR??,,????'??? These breakers don?EUR??,,????'???t use a high-pressure (350-700 psi) accumulator for power; instead they use a gas-assist cycle and utilize the hydraulic system for most of the firing power. Low Recoil ?EUR??,,????'??? The nitrogen chamber provides significant reduction in breaker recoil. The low-pressure nitrogen charge cushions piston recoil to protect the skid steer and operator from the recoil caused during the rebound or cocking stroke. No Hydraulic Surge ?EUR??,,????'??? The efficient, fully hydraulic design protects the skid steer hydraulic circuit so that no surge-damping accumulators are required.

Chain Drive Auger

Lighter use situations call for the rugged, reliable construction of the chain drive auger. Fixed chain centers eliminate adjustments, while the floating drive sprocket ensures constant chain alignment. The hardened drive sprocket resists wear and helps to assure a long, trouble-free life. Spring-loaded, double-lipped seals guard against contamination and failures. Self-plumbing for straight holes in level or sloped terrain.

Concrete Hauler

This skid-steer concrete hauler does the work for you. Place concrete accurately in tight areas. The hydraulic gate unloads material with no additional manual labor. Manufactured by Loegering, Mud Bucket??????oe is designed to mount to your machine using existing attachment mounting system. It comes complete with hydraulic cylinder and hoses. Hydraulic couplings vary between manufacturers; therefore it does not come with couplings.

Pallet Fork

Constructed of rugged, heavy-gauge steel, Loegering pallet forks are built to withstand the rigors of any job site. With performance that exceeds your expectations, this innovative attachment has the added value of operator ease and enhanced safety. Other features include: recessed forks; adjustable forks; heavy-duty guard plate; universal mounting system; convenient entry steps; multiple fork lengths.

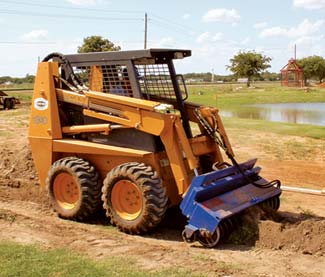

McCullough cover-up attachments series 2000 can backfill 60 foot of trenching in 60 seconds without damaging the turf.

Snow Plow

The Trip-Edge Plows feature tough, reliable characteristics, such as a reinforced diagonal cross-bracing for a strong blade and fast, reliable hydraulics. Other features include: Push frames are constructed with a 3???2-1/2 by 3/8-inch channel and 1/4- inch tubing, twice as thick as competitors. Moldboards are built in one continuous piece so the blade skin will not separate from the ribs over time, unlike other plows, which are seam-welded across the top and bottom of the blade. Cast-iron blade shoes are tucked up and under the base angle to prevent wear and damage while plowing.

Edger

The ED200 Edger, an attachment made by Ventrac, is designed to edge sidewalks, curbs, and cart paths as well as edging and maintaining flower and mulch beds. Edging can be done on either the right or left side per the operator?EUR??,,????'???s choice. For hard ground edging, three 42 lb. weights may be added. The Multi-Position swivel wheel can be adjusted to various heights to follow a variety of terrain.

Trencher

The KY400 Trencher is capable of trenching up to 40 inches in depth with a 5 1/2 inch wide cut. It?EUR??,,????'???s designed with dual Push-N-Pull cylinders to assure positive boom control for digging, boom lift, and transport. The terminator/cup combo chain offers carbide cutting tips for excellent cutting performance in a variety soil conditions. Digging teeth bolt onto the chain for easy replacement. The KY400 attached to a 4000 Series tractor gives the operator the ability to maneuver into hard-to-reach locations without damaging the turf like a traditional track unit would.

V-Blade

The KV550 V blade offers you flexibility and productivity for any material handling task. Each blade is controlled by its own hydraulic cylinder, allowing full control of the tool shape from the comfort of the driver?EUR??,,????'???s seat. Using Ventrac?EUR??,,????'???s exclusive SLDA controls, both the tractor movement and the attachment control is handled at one convenient location. The KV550 V Blade can be easily adjusted for height, with skid shoes setting the push height of the blade. Changeable cutting edges allow the KV550 to be kept operating efficiently.

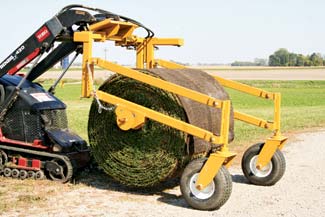

Handle rolls of sod up to 48 inches wide with the Big Roll Sod Installer. Make quick work of sod installation! The roll is grasped by the machine using a hydraulic cylinder. The unique design allows for a portion of the roll weight to be carried, even over rough or uneven surfaces, by caster wheels.

Cold Planers

CASE/ATI cold planers offer the following advantages: Highly versatile cold planers are adaptable to a wide variety of job environments including road construction, bridge deck repair, landscaping municipal, shopping center, and utility work. These cold planers are easy to maneuver around manholes and storm drains; excellent for bridge decks where heavier dedicated planers are not allowed. They combine two tools in one; cut asphalt and concrete with the same machine. Optional water kit reduces dust and increases tooth life by 20 to 30 percent. Features include independent pivoting head for better contour tracking. Solid hardened steel wheel construction with greaseable manifold pins. T1 steel construction in high wear areas.

Jib Boom

Jib Booms offer the following advantages: Ideal for moving trees for transplanting. Use to load and unload attachments, etc. Ideal for placing and removing concrete forms. Adds 61?2 feet of reach to your loader. Fits carriers with lift capacities 8,000 lbs. and operating weight 32,000 lbs.

Silt Fence Installer

By using a silt fence installer you have the ability to install fences to 12?EUR??,,????'?? depth; eliminate trenching and backfilling; eliminate traction problems in hard or soft ground; eliminate washouts and blowouts at the bottom of fencing; install with greater reliability; satisfy the concerns of demanding regulatory and environmental bodies; uninstall fence effortlessly and quickly.

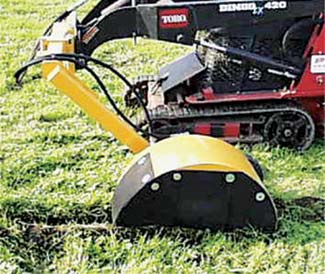

Cut the trench for bed edging using the BOATM Bed Edger, made by Landscape Equipment Company, LLC. Digging power by a 10HP hydraulic motor. The innovative design allows for tight radius curves and circles. Burying low voltage cables and irrigation tubing are other possible uses.

Rock Pickers

Kwik-pik, made by Loftness, picks rocks and debris from two inches to two feet in diameter. With this attachment you will never need to Pick Up Rocks by Hand Again. For use in: agriculture, commercial, industrial and landscaping. Picks up: rocks, rubble, logs, firewood, bricks, blocks and other debris. Four sizes to choose from: 48, 60, 72 and 84 inch. Front-mounted, front-dumping. Dumps rocks directly into trucks quickly and safely. Requires six gpm hydraulic flow.

Brush Shredders

Use in Standing or Windrowed Brush. Front-mounted, hydraulic-driven at 21 to 54 gpm. Universal skid-steer mounting; cuts brush or grass with same knives; three-point hitch and PTO models also available. Features include main bearing deflector guard; spring-loaded belt tightener; taper-lock sheaves; heavy-duty belt shield; steel deflector shields; adjustable rear door.
