Happy Trails With These Trailers

LCN HorsePower - April 2009
Click on the image or title below to find to more information about the Product

Trailers can serve a myriad of purposes from hauling your equipment to loading litter or green waste. You need to find the trailer that best serves your purpose. With that in mind, pay close attention to the special features of each trailer. For your convenience these trailers have been arranged in order of cost.

Bil-Jax (Haulotte Group)
Model No.:ET 7000
Materials: Heavy-Duty welded frame, powder coated paint finish, heavy duty diamond treated plate deck
Dimensions: L 234'' x W 102''
Weight: 2,980 lbs.
Carrying Capacity: 7,000 lbs.
Maximum dump angle: Ramp grade of 6 degrees
Special Features: Deck hydraulically lowers to the ground for the easy unloading of the toughest machines. Fits a wide range of equipment including; skid steers, boom lifts, scissor lifts, mini-excavators, small rollers, floor saws and trenchers. Comes with brakes on all four wheels.
Warranty: 1 year
Cost: $12,950

Alum-Line, Inc.
Model No.: DP8016
Materials: Aluminum
Dimensions: L 192'' x W 80''
Weight: 4,000 lbs.
Carrying Capacity: 10,000 lbs.
Maximum dump angle: 50 degrees
Special Features: Non-skid tongue and groove extruded aluminum flooring, eclectic double acting hoist with sub frame, steel rims with radial tiers, electric brakes on all axles, and heavy duty single speed landing leg.
Warranty: 5 years
Cost: $12,900

Wells Cargo
Model No.: EW2024
Materials: Enclosed cargo trailer features steel structured frame, .030 aluminum exterior, smooth galvanized steel roof, 3/4'' pressure-treated plywood floor and 3/8'' exterior grade plywood sidewall liner.
Dimensions: L 288'' x W 102''
Weight: 2,985 lbs.
Carrying Capacity: 7,015 lbs.
Special Features: Includes LS Package containing frame crossmembers on 16" centers, rear ramp door with spring assist, slip resistant ramp edge protector, corner post stabilizer jacks, aluminum tread plate stone guard.
Warranty: 6 years
Cost: Starting at $9,205

Eager Beaver Trailers
Model No.: B6DOW
Materials: Pierced Beam; Oak Deck
Dimensions: Flat Deck - 8'W x 16'6'' L
Weight: 4,200 Lbs
Carrying Capacity: 12,000 lbs.
Special Features: Pintle or 2 5/16'' ball, electric brake, Roto D-Rings, LED Lights, 34'' loaded deck height, spring assist ramps.
Warranty: 1 year, 100 percent parts and labor
Cost: $7,600

Ditch Witch
Model No.: Full-width wooden or steel decks
Dimensions: L 207'' x W 156'' x H 30''
Weight: 2,100 lbs.
Carrying Capacity: Tongue load, maximum 975 lbs.
Maximum dump angle: Loading ramp 18 degrees
Special Features: Single-axle design with a full-width wooden or steel deck; standard tie-down points; tongue safety chains; complete lighting, including custom-made wiring harness and shock-mounted clearance lights for highway driving.
Warranty: 1 year limited
Cost: $5,600 to $6,000

Corn Pro Trailers
Model No.: UT-21 HT
Materials: number-one treated, kiln dried lumber
Dimensions: 81'' between fenders, 21' total length, 17' tilting deck
Weight: 3,680 lbs.
Carrying Capacity: 10,000 lbs.
Maximum dump angle: Tilting angle is 12 degrees.
Special Features: Low Profile Tilt Trailer is made for convenience, and ease of use. The simple latching mechanism allows you to unlock both sides of the bed with one swift movement of the handle. Just tilt the bed down, drive on and the bed locks itself back. Tie your machine down and you're ready to go.
Warranty: 1 year
Cost: $4,900 to $5,800, depending on options.

AmeriDeck
Model No.: ChoreMaster
Materials: Steel
Dimensions: L 93.5'' x W 53.8'' x H 14''; 42 cubic foot capacity
Weight: 670 lbs.
Loading Capacity: 2,000 lbs
Maximum dump angle: 45 degrees
Special Features: Smart solution to increase the safety, convenience and versatility of your full-size pickup truck; with push-button operation and the ability to load at ground level, the system makes it easier than ever for one person to load and unload their equipment.
Warranty: 1 year
Cost: $3,821

Bri-Mar
Model No.: DT714LPHD
Materials: Steel-8'' tube mainframe; 3'' channel cross-members; 10 gauge floor
Dimensions: L 168'' x W 84''
Weight: 4,000 lbs.
Carrying Capacity: 14,000 lbs.
Maximum dump angle: 44 degrees
Special Features: Dual Dexter EZ Lube axles; twin 3.5'' electric/hydraulic dump cylinders; valspar powder coated paint; led lights; radial tires; adjustable coupler.
Warranty: 2 Years
Cost: About $3,000

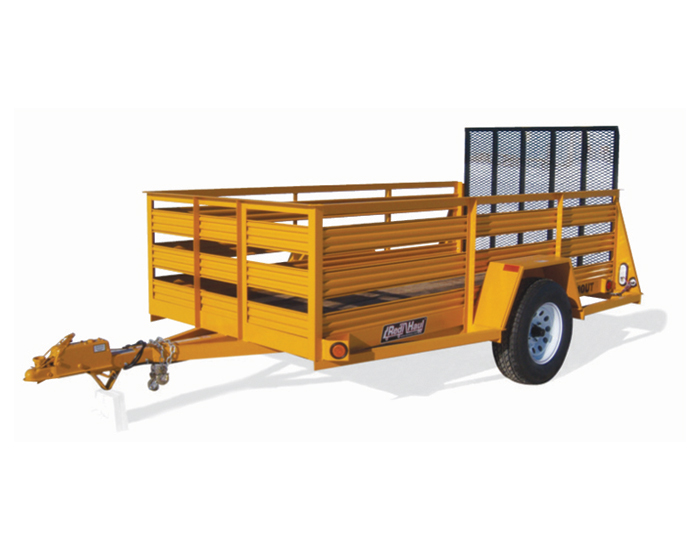

Redi Haul
Model No.: RH10UT
Materials: Slatted steel sides, nominal pine deck treated
Dimensions: L 10'' x W 60''
Weight: 3,930 lbs.
Carrying Capacity: 2,600 lbs.
Maximum dump angle: 18'' deck height
Special Features: Safety breakaway system with low charger without battery; safety chains with snap hook; sealed and shock mounted LED tail lights; sealed modular wiring system; hydraulic surge brakes on all wheels.
Warranty: 2 years structural
Cost: $2,990

Standard Hamilton Co.
Model No.: (Dump insert for existing trailers) Dump-Pro Model FS1-12 (kit or assembled)
Materials: Steel reinforced poly dump body
Dimensions: 96'' L x 61.5'' W x 26.25'' H (Basic unit less Hi-Sides option)
Weight: Basic unit 391 lbs.
Carrying Capacity: 3,500 lbs, dumps 3,000 lbs. Basic unit 2 yards, with Hi-Sides option 4 to 5 yards.
Maximum dump angle: 60 degrees
Special features: Non-rusting poly dump body; can also be put onto pickup truck or flatbed; with Quick Change-Out option, it can go from Pick-Up to Dump Truck in Minutes.
Warranty: 2 years entire unit, except winch which is 1 year.
Cost: Base unit including trailering option is $2,544.

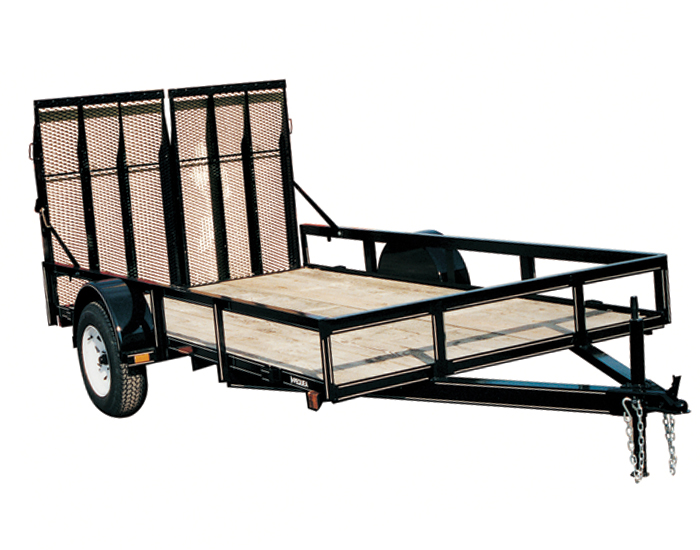

Skibo Co.
Model No.: Pequea 8012 S
Materials: 2 x 10 pressure treated ACQ Number Two lumber
Dimensions: L 192'' x W 100'' x H 33''
Weight: 1,200 lbs.
Carrying Capacity: 2,999 lbs.
Special Features: 8000-series utility trailers feature 80 inches between the fenders to make hauling larger mowers a snap. They also have a rigid angle-iron frame rail practical for securing equipment with straps and chains.
Warranty: 1 year
Cost: Starting at $1,525

Lifetime Products
Model No.: Fold Up Utility Trailer
Materials: Heavy-duty 22 gauge galvanized steel weather-resistant frame
Dimensions: Bed L 96'' x W 62'' x H 11'', folds to a manageable 29'' Weight: 419 lbs.
Carrying Capacity: 1,500 lbs.
Maximum dump angle: Ramp grade of 6 degrees
Special Features: Removable and rear gates that double as ramps, allowing owners to easily load and unload larger, heavier items; a full light kit includes brake, turn signals, tail lamps and wire harness for safety.
Warranty: 2 years limited
Cost: $1,399
